Machine structure is manufactured from high quality Meehanite class FC cast iron
Spindle motor select high stability Siemens motor
X and Z axis guide way use double V design
Y and Z axis use precision ball screw
Y axis use AC servo motor and go with MPG reach high feeding accuracy
Cross stroke adjusting function get rid of inconvenience of traditional sensor and increase grinding efficiency. All guide way and ball screw use automatic lubrication system for forced cycle lubrication (with alarm for oil detective)
AND control: The operation modes are easy and simple for user to set up auto grinding
AND:PLC automatic in 3 axis (x.y.z)
AND control
-
-
-
-

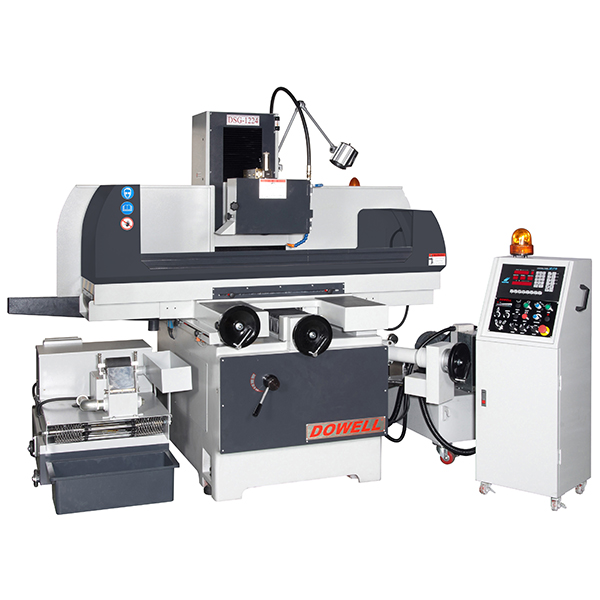

DESCRIPTION UNIT DSG-1224AND General Capacity Table size (lxw) mm 300x600 Max.grinding length mm 650 Max.grinding width mm 340 Distance from table surface to spindle center mm 600/700(opt.) Standard mag. Chuck size mm 300x600 Longitudinal Movement Manual travel mm 700 Hydraulic traverse mm 650 Hydraulic feed (table speed) approx. m/min 1~19 Cross Movement Manual travel mm 340 Auto cross feed mm 310 Hand feed per revolution mm 5 Hand feed per graduation mm 0.02 Continuous cross feed (approx.)50/60HZ mm/min 1100 Increment cross feed mm/min 1~20 Vertical Downfeed Rapid traverse (approx.) mm/min 800 Slow traverse (approx.) mm/min 29 Hand feed per revolution mm/MPG 0.1mm/MPG Hand feed per graduation mm/MPG 0.001mm/MPG Auto downfeed rate mm 0.001~0.099 Jog mm 0.001 Pre-set spark out times 0.9(passes) Manual pulse generator x1, x5, x10 Grinding Wheel Wheel size (diax width xbore) mm Ø355x38x127 Spindle speed (50/60HZ) r.p.m 1450/1750 Motor Spindle drive motor HP 5/7.5(opt.) Hydraulic motor HP 2 Cross feed motor W 80 Rapid hand elevatipn servo motor W 400 Weight Net weight / gross weight (approx.) kg 2350/2550 Packing Size Length × width × height mm 2400x1900x2280 ※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
-
STANDARD ACCESSORIES
- Grinding wheel
- Wheel flange with extractor
- Balancing arbor
- Diamond dresser and base
- Working lamp
- Leveling plate
- Leveling screw & nut
- Tool box with tools
- Operation manual & Inspection report
- Touch-up paint
