ROTARY SURFACE GRINDER
VERTICAL ROTARY SURFACE GRINDER

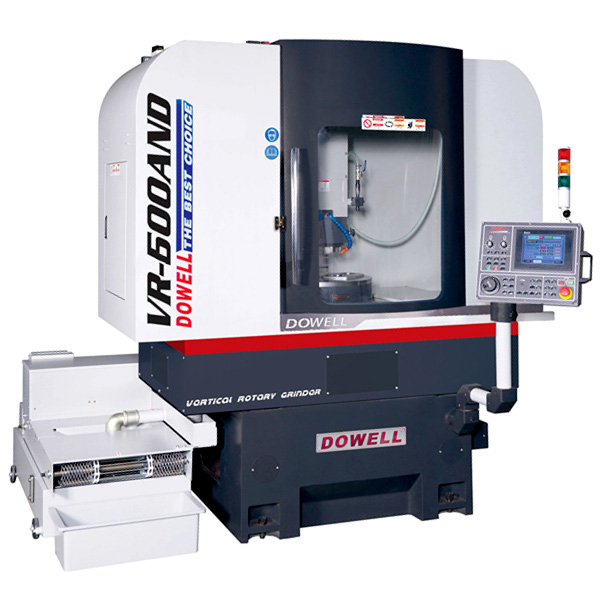

VR-600AND
Meehanite Class FC30 casting with high riqid and wear resistance guide way insure machine permanent accuracy.
Spindle is designed for providing excellent stability and heavy duty grinding.
Siemense V3 grade spindle motor with good watarproof and moisture resistant design.
Vertical feeding guide way use high rigid roller linear guideway (block x 6) provide smooth movement and rigidity.
Work table with fine pitch magnetic chuck has powerful attractive force and specalized for small workpiece.
Specification
| DESCRIPTION | UNIT | VR-600AND Easy type |
|---|---|---|
| Rotary magnetic chuck dia. | mm | 600 |
| Maxi grinding radius | mm | 300 |
| Distance of table surface to spindle surface center | mm | 325 |
| Table Load | kg | 150 |
| Rotary magnetic chuck speed | r.p.m. | 5~50 |
| Rotary magnetic chuck horse power | kw | 3 |
| Spindle motor | HP | 15HP/20HP (OPT.) |
| Spindle speed (50/60Hz) | r.p.m. | MAX 1200r.p.m |
| Auto downfeed horse power | W | Servo Motor 500 |
| Vertical hand wheel downfeed per revolution | MPG/mm | x1, x5, x10 / 0.1, 0.5, 1 |
| Vertical hand wheel downfeed per graduation | MPG/mm | x1, x5, x10 / 0.01, 0.05, 0.01 |
| Wheel size (dia x width x bore) | mm | LxWxTxPcs 150x50x25x8(pcs) |
| Net weight / gross weight (approx) | kg | 2800/3400 |
| Packing size (LxWxH) | mm | 2800x2300x2280 |
※ The manufacturer reserves right to modify the design, specification mechanisms etc. without notice.
