Double Column Machining Center
DOUBLE COLUMN MACHINING CENTER

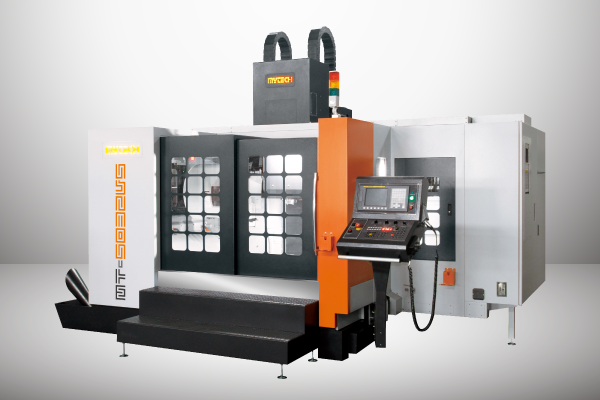

MT-5032V/VS

BBT40
X1270 / Y815 / Z610

FEATURES
The widest of door be 1450 mm. It is easily to take the workpiece.

The side door size be 600 x 900 mm (Width x High)

The pendant control box can be arbitrarily rotating swiveling. The user can set the spindle tool on machine side easily.

40 feet high container can be installed 2pcs machine, reduce transportation costs and increase competitiveness.

The major parts are manufactured from cast iron, strong structure and strong ability to with stand shock.

The entire machine structure has been analyzed and designed by SOLIDWORKS for superior rigidity and accuracy.

Three-Axes roller type linear quideway, improve the cutting load to ensure dynamic accuracy and long service life.

Linear way of Ladder type beam construction on Y axis. Extra wide span between two linear ways exhibits outstanding stability of cutting.

Six roller type slide blocks on Z axis, to ensure that the spindle accuracy and stable when machining cutting.

Y axis used twin-chip auger (front-out), the chips can be easily discharged to machine outside.

Specification

sz-a8v-feature-01

Robust Structure

sz-a8v-feature-01

Panoramic view of the lighting, can enhance the brightness inside the machine

sz-a8v-feature-01

The workpiece size can be put 1250x800x500 mm on work table, it is wide for machining space

APPLICATION

SPECIFICATIONS

Model MT-5032 V MT-5032 VS
Table Size mm 1300 x 850 1300 x 850
T-slot (width x no x distance) mm x T 18 x 5 x 150 18 x 5 x 150
Maximun table load kgs 1000 1500
Travel X, Y, Z-axis mm 1270 x 815 x 610 1270 x 815 x 610
Table top surface to spindle nose mm 200-810 200-810
Spindle center to column slide ways mm 1100 1100
X, Y, Z-Axis linear guideway type mm 45 / 45 / 45 45 / 45 / 45
X / Y / Z-Axis Ball screw   40 / 40 / 40 40 / 40 / 40
Spindle Spindle holder   DIRECT BUILT
Taper   BBT40 BBT40
Diameter mm ∅70 ∅65
Spindle speed rpm 15000 20000
Feed Three axes   Roller type linear guideway Roller type linear guideway
Cutting feedrate X / Y / Z (G01) m/min 10 / 10 / 10 10 / 10 / 1 0
Rapid feedrate X / Y / Z (G0) m/min 20 / 20 / 20 20 / 20 / 20
ATC Type   ARM Umbrella
Max. tool Dia mm ∅75 / ∅150 ∅75 / ∅200
Max. tool length mm 300 200
Max. tool weight kgs 7 7
Tool type   CAT40 CAT40
Tool magazine capacity T 24 12
Motors Spindle  kw 15 23
X / Y / Z-Axis kw 7.0 / 7.0 / 7.0 7.0 / 7.0 / 7.0
Coolant pump kw 0.75 0.75
ATC motor w 350 350
Air conditioner w 500 500
Spindle oil cooler w 600 600
Chip flush motor w 1290 1290
Other Machine space ( L x W ) mm 3300 x 2800 3300 x 2800
Coolant tank capacity L 400 400
Net weight kgs 11000 11000
Total power consumption KVA 50 50
Air source required kg/cm2 6 up 6 up

* All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.

  • STANDARD ACCESSORIES
  • Full-closed splash guard
  • Oil skimmer system
  • Water gun and air gun
  • Chips flush system
  • Tools box
  • LED work lamp
  • Automatic lubrication system
  • Heat exchanger for electric cabinet
  • 3 color Alarm light
  • Automatic tool length measuring device
  • Spindle oil cooler system
  • Spindle splash ring
  • Screw type chip conveyer
  • OPTIONAL ACCESSORIES
  • BBT #40 Direct type spindle 12000 RPM
  • BBT #50 Direct type spindle 6000-8000 RPM
  • HSKA63 Built type spindle 24000 RPM
  • Long type spindle
  • Flat type chip conveyer
  • Coolant through spindle
  • 3-Axes optical scale
  • CE norm
  • Breakage detection system
  • Oil mist collector
  • Inverter ATC system
  • X and Y Axis coolant through ball screws
  • CNC 4th Axis rotary table
  • CNC 4th & 5th Axis rotary table
