Specification
Table
Control Panel
Lubrication oil control valve
SPECIFICATIONS

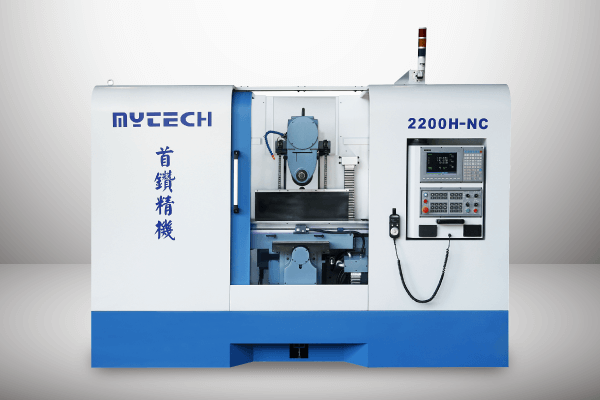

| Model | SZ-2200H-NC | ||
|---|---|---|---|
| Spindle | Spindle speed of Horizontal | rpm | 75-1050 9 speed |
| Quill feed per revolution of spindle | mm | 0.035 / 0.07 / 0.14 (a circe) | |
| Table | Table size | mm | 1350 x 305 |
| Longitudinal travel | mm | 800 | |
| Cross travel | mm | 400 | |
| Vertical travel | mm | 400 | |
| T-slots (no. x wide x pitch) | mm | 3 x 16 x 63 | |
| Cuting federate | mm/min | 0-1500 | |
| Rapid traverse | mm/min | 3000 | |
| Table elevating speed | mm/min | 1150 | |
| Motors | Main spindle | kw | 3.5 (5HP) |
| Table elevating | kw | 0.75 (1HP) | |
| Lubricating pump | w | 150 | |
| Electromagnetic pump | w | 40 | |
| Machine Weight & Packing | Machine measurement (L x W x H) | mm | 3000 x 2000 x 2100 |
| Packing size of cover (L x W x H) | mm | 3150 x 1880 x 2250 | |
| Packing size of machine (L x W x H) | mm | 1910 x 1550 x 2150 | |
| Net weight | kgs | 2500 | |
| Gross weight | kgs | 2700 | |
| Net weight of cover | kgs | 300 | |
| Net weight of cover | kgs | 500 | |
* All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
- Tool box and tools
- Working light
- Draw bar (manual)
- Chip cover on Y axis (rubber)
- X, Y, Z axis AC servo motor
- Control panel (EMBED-900)
- DRO
- Draw bar (pneumatic)
- Coolant system
- CNC rotary table
- Chip cover on Y axis (stainless)
- Full cover sheet metal
