NC Milling machine

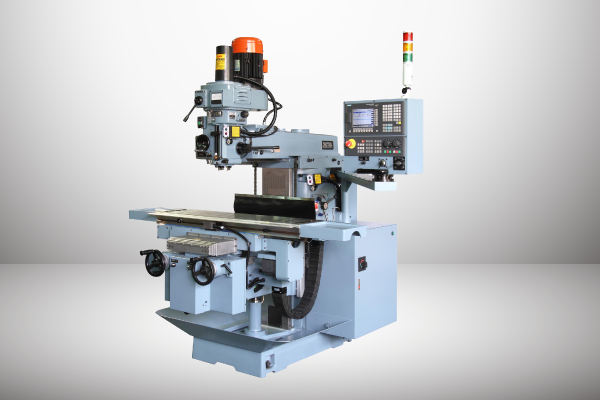

NC MILLING MACHINE
SZ-2200VSD-NC

NST 40 / BT 40
X800 / Y400 / Z350

FEATURES
Retain the traditional X, Y, Z axis hand wheel feel, combined with modern NC controller, dual operating functions can be flexibly controlled

ShopMill/ShopTurn (machining step programming)

Simultaneous recording (realtime simulation of curr. machining)

2.5D simulation (machined part)

Specification

sz-2200h-vsd-nc-feature-01

Control Panel

sz-2200h-vsd-nc-feature-02

X, Y axis manual control then automatic feed

sz-2200h-vsd-nc-feature-03

Z axis Counter weight balance (500kgs)

SPECIFICATIONS

Model SZ-2200VSD-NC
Spindle Spindle speed of Vertical rpm 60-3600
Spindle taper   NST 40 / BT 40
Swivel angle of head mm 45° (R&L)
Overarm travel mm 140
Quill feed per revolution of spindle mm 0.035 / 0.07 / 0.14 (a circe)
Table Table size mm 1350 x 305
T-slots mm 16 x 3 x 63
Maximun table load kgs 500
Travel X,Y, Z-axis mm 800 x 400 x 350
Spindle nose to table surface mm 0-530
Spindle center to column slide ways mm 150-600
Feed Slide feedrate X / Y / Z   Box Way
Cutting feedrate X / Y / Z m/min 2.4 / 2.4 / 2.4
Rapid feedrate X / Y / Z m/min 3 / 3 / 3
Motors Spindle motor of Vertical kw 3.7
Spindle motor of Horizontal kw 3.7
X, Y, Z axis drive motors kw 1 / 1 / 2
Lubricating pump w 150
Electromagnetic pump w 40
Coolant pump w 95
Other Machine measurement (L x W x H) mm 2150 x 2030 x 2400
Paking measurement (L x W x H) mm 2300 x 1760 x 2200
Weight kgs 3000

* All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.

  • STANDARD ACCESSORIES
  • Siemens 808D control
  • X, Y, Z - axis Ball screw
  • Tool box and tools
  • Working light
  • Draw bar (manual)
  • Tapping Equipment of spindle
  • X, Y, Z - axis motor automatic feed
  • Y axis guideway cover
  • Heat Exchanger
  • Alarm light
  • Z axis Counter weight balance
