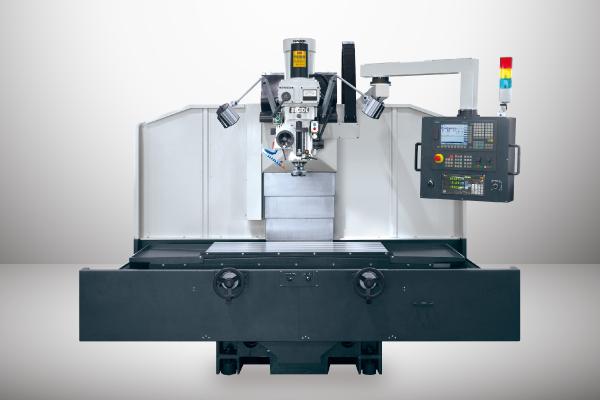

Specification
FEATURES
Coolant Pump
Control Panel
Spindle Head
SPECIFICATIONS
| Model | BT-1200 | ||
|---|---|---|---|
| Spindle | Spindle speed | rpm | 60-3600 |
| Spindle taper | NST 40 / BT 40 | ||
| Swivel angle of head | mm | 45° (R&L) | |
| Overarm travel | mm | 140 | |
| Quill feed per revolution of spindle | mm | 0.035 / 0.07 / 0.14 (a circe) | |
| Table | Table size | mm | 1250 x 500 |
| T-slots (width x no x distance) | mm x T | 18 x 5 x 96 | |
| Table elevating speed | m/min | 20 | |
| Maximun table load | kgs | 1000 | |
| Travel | X, Y, Z-axis | mm | 1300 x 600 x 600 |
| Spindle nose to table surface | mm | 0-650 | |
| Spindle center to column slide ways | mm | 570 | |
| Feed | Slide feedrate X / Y / Z | Box Way | |
| Cutting feedrate X / Y / Z | m/min | 2 / 2 / 2 | |
| Rapid feedrate X / Y / Z | m/min | 10 / 10 / 8 | |
| Motors | Spindle motor | kw | 3.7 |
| Z axis drive motors | kw | 3 | |
| X, Z axis drive motors | kw | 2 | |
| Lubricating pump | w | 150 | |
| Electromagnetic pump | w | 40 | |
| Coolant pump | w | 1270 | |
| Other | Machine measurement (L x W x H) | mm | 2850 x 2302 x 2295 |
| Paking measurement (L x W x H) | mm | 3000 x 2300 x 2300 | |
| Net weight | kgs | 4300 | |
| Gross weight | kgs | 4730 | |
* All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
- STANDARD ACCESSORIES
- LNC-M528A controller
- X, Y, Z - axis Ball screw
- Tool box and tools
- Working light
- Draw bar (manual)
- Tapping Equipment of spindle
- X, Y, Z - axis motor automatic feed
- X axis roll cover
- Y, Z - axis guideway cover
- Heat Exchanger
- Alarm light
- Water tank covered
- OPTIONAL ACCESSORIES
- Transformer
- Draw bar (pneumatic)
