VERTICAL MACHINING CENTER
VERTICAL MACHINING CENTER

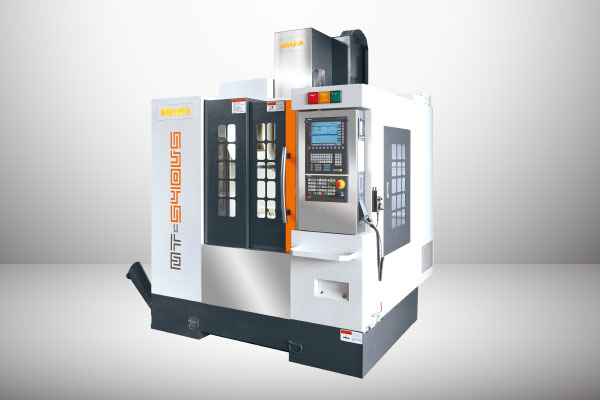

MT-440V/VS

BT40
X450 / Y400 / Z400

FEATURES
Belt type spindle:10,000 RPM

Direct drive spindle:10,000 / 12,000 RPM

Arm type 20 tools ATC

Rapid feedrate:48 M/min

The base structure is reinforced by internal ribbing to ensure high rigidity and stability.

The machine processing fast, high precision, three axes rapid feedrate 48 m/min, it is safe time to achieve economic efficency.

Applicable Industries:3C industries, Communications industry, Molds, Automotive and motorcycle parts.

The ATC of supporting seat and column are one-piece. It is stability when tool change tool.

Specification

Workpiece

Spiral

Deep needle

Lampshade

APPLICATION

SPECIFICATIONS

Model MT-440 V MT-440 VS
Table Size mm 550 x 450 550 x 450
T-slot (width x no x distance) mm x T 18 x 5 x 90 18 x 5 x 90
Maximun table load kgs 200 200
Travel X, Y, Z -axis mm 450 x 400 x 400 450 x 400 x 400
Table top surface to spindle nose mm 120-520 120-520
Distance between spindle center and
column surface
mm 490 490
X, Y, Z-Axis linear guideway type mm 25 / 25 / 30 25 / 25 / 30
X / Y / Z-Axis Ball screw   28 / 28 / 32 28 / 28 / 32
Spindle Spindle holder   BELT DIRECT
Taper   BT40 BT40
Diameter mm ∅60 ∅60
Spindle speed rpm 10000 10000
Feed Three axes   Roller type linear guideway Roller type linear guideway
Cutting feedrate X / Y / Z (G01) m/min 10 / 10 / 10 10 / 10 / 10
Rapid feedrate X / Y / Z (G0) m/min 48 / 48 / 48 48 / 48 / 48
ATC Type   ARM ARM
Max. tool Dia mm ∅75 / ∅150 ∅75 / ∅150
Max. tool length mm 200 200
Max. tool weight kgs 7 7
Tool type   BT40 BT40
Tool magazine capacity T 20 20
Motors Spindle (Cont. /30 min) kw 5.5 / 7.5 5.5 / 7.5
X / Y / Z -Axis kw 1.5 / 1.5 / 3.0 (Mitsubishi)
1.4 / 1.4 / 3.0 (FANUC)
1.5 / 1.5 / 3.0 (Mitsubishi)
1.4 / 1.4 / 3.0 (FANUC)
Coolant pump kw 0.75 0.75
ATC motor w 350 350
Air conditioner w 500 500
Spindle oil cooler w 600 600
Chip flush motor w 1290 1290
Other Machine space ( L x W ) mm 1700 x 1860 1700x 1860
Splash guard   Full-closed splash guard Full-closed splash guard
Coolant tank capacity L 220 220
Net weight kgs 3400 3400
Total power consumption kw 15 15

* All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.

  • STANDARD ACCESSORIES
  • Full-closed splash guard
  • X, Y, Z-Axis telescoplc guideway cover
  • Oil skimmer system
  • Water gun and air gun
  • Chips flush system
  • Tools box
  • LED work lamp
  • Arm type 20 tools ATC
  • Automatic lubrication system
  • Heat exchanger for electric cabinet
  • 3 color Alarm light
  • MITSUBISHI controller M70
  • Screw type chip conveyer
  • Automatic tool length measuring device
  • Spindle oil cooler system
  • Spindle splash ring
  • OPTIONAL ACCESSORIES
  • FANUC system controller
  • SIEMENS system controller
  • Direct type spindle 12,000 / 15,000 RPM
  • Built type spindle 20,000 / 24,000 RPM
  • Coolant through spindle
  • Air conditioner
  • Transformer
  • Voltage regulator
  • Flat type chip conveyer
  • CE norm
  • 3-Axes optical scale
  • Breakage detection system
  • Oil mist collector
  • Inverter ATC system
  • X and Y Axis coolant through ball screws
  • CNC 4th Axis rotary table
  • CNC 4th & 5th Axis rotary table
