Products

Grinding & polishing

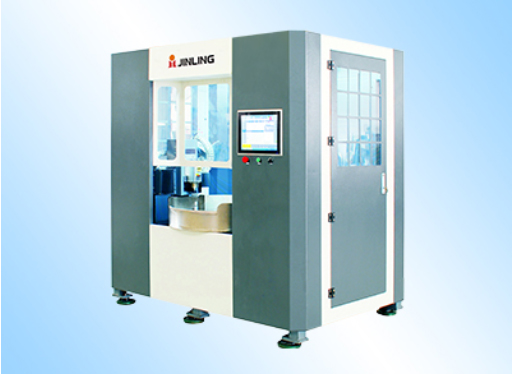

Rotary type CNC polishing machine
JL-P3-3M

This machine is mainly used in mobile phones of non-metallic materials such as glass and ceramics. 2.5D, 3D cover polishing. And also for metal material back cover such as aluminum alloy.



MAIN FEATURES:

·Adopting 4 station structure, three-station polishing can realize the rough, medium-precision and precision three-stage process in one machine.

·Rotating lower polishing plate can realize non-stop loading and unloading to improve equipment efficiency.

·Easy to install, automatic liquid discharge, stable and reliable polishing.

·Flexible loading system for efficient polishing of hard and brittle parts.·Touch screen man-machine interface, PLC control, friendly interface, large amount of information.

Specification

設備行程(磨組導軌上銀)

Equipment stroke (grinding group guide:HIWIN)



X軸行程150(mX 軸行程 150(mm)X-axis stroke

Y 軸行程 150(mm) Y-axis stroke

Z 軸行程 150mm Z-axis stroke

設備移動速度Equipment movement speed



X 10 /min Y 10 /min Z 10 /min

X axis 10M/MinY axis 10M/MinZ axis 10M/Min

定位精度positioning accuracy

±0.02/150mm

重複定位精度Repeatability

±0.03/150mm

進口CNC控制系統Imported CNC control system

12 axis

工件數量Number of workpieces

4

磨頭數量Number of grinding heads

3

加工範圍Processing range

5kgf/cm²

氣壓Air pressure

11kw 100r/min

電壓Voltage

380V/50HZ

功率power

7.5KW

設備外形尺寸(長×寬×高)Equipment dimensions (L×W×H)

1980×1450×1980mm

設備重量Equipment weight

2000KG
