CNC Rotary Table (Stainless Steel)-FOR EDM

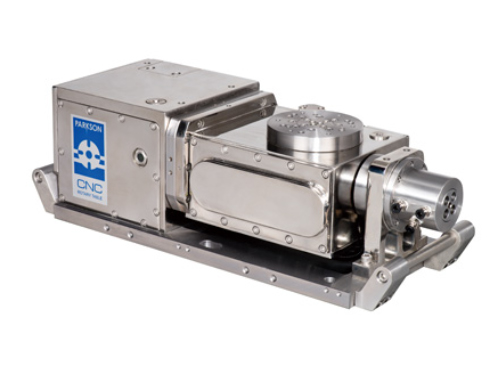

PARW Series / CNC Tilting Rotary Table
PARW-115~800

Product Feature
1.High accuracy and high rigidity.
2.Body and cover fully made of stainless steel with increased durability and waterproof.
3.Sealed with O-ring to achieve highest protection level at IP68, capable of fully merged into electrolyte for machining.
4.Capable of 5-axis simultaneous machining with machine tools.
5.Capable of double axis control with double axis controller.

Specification

Model

Item

Unit PARW-115 PARW-120 PARW-131 PARW-151 PARW-250 PARW-400 PARW-800
Table Diameter mm Φ115 Φ120 Φ130 Φ150 Φ250 Φ400 Φ800
Overall Height in Horizontal mm 175 266 266 266 410 427 780
Overall Length mm 535 444.5 474.5 474.5 955 970 1266
Center Height in Vertical mm 110 180 180 180 290 290 460
Overall Height in Horizontal of Table  mm 170 180 180 180 290 300 490
Axis   Rotating Tilting Rotating Tilting Rotating Tilting Rotating Tilting Rotating Tilting Rotating Tilting Rotating Tilting
Total Reduction Ratio   1:120 1:144 1:60 1:60 1:60 1:60 1:60 1:60 1:90 1:180 1:90 1:180 1:180 1:360
Max. Rotation Speed
Motor 2000min-1
r.p.m. 16.6 13.8 33.3 33.3 33.3 33.3 33.3 33.3 22.2 11.1 22.2 11.1 11.1 5.6
Indexing Accuracy arc-sec 60 60 60 60 60 60 40 60 20 60 20 60 15 45
Repeatability Accuracy arc-sec 6 8 6 8 6 8 6 8 6 8 6 8 6 8
Max. Work Load Horizontal(0°~45°) kg 20 30 30 30 65 65 300
Tilting(45°~90°) kg 15 25 25 25 45 45 -
Allowable Work Inertia kg-m2 0.03 0.05 0.06 0.08 0.51 1.3 24
N.W. kg 60 88 88 88 317
