Swing Spindle Head

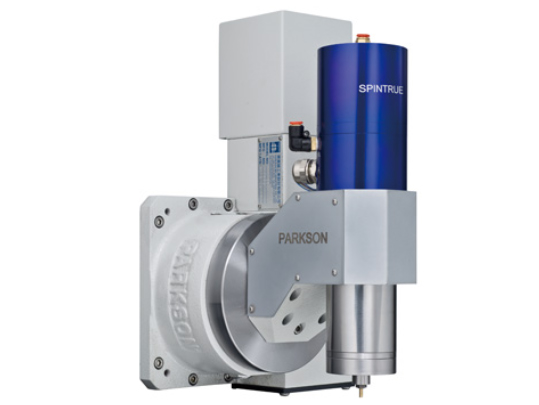

SNC Series／ Swing Spindle Head
SNC-15~55A
Product Feature
1. B axis capable of simultaneous machining (0.001 degree) with high precision positioning and each 5-degree division positioning machining (larger torque rigidity in turning), can do heavy cutting.
2. Built-in 15000rpm turning spindle HSK-63T (CAPTO 6).
3. B axis swinging ±110 degrees.
4. Modulation design for quick installation.
5. B axis in high flexibility and productive efficiency for turning and milling.
Specification
|
Model Item |
Unit | SNC-15 | SNC-35 | SNC-55 | SNCG-55 | SNCG-55A | |
|---|---|---|---|---|---|---|---|
| Total Reduction Ratio | 1：60 | 1：90 | 1：120 | 1：120 | 1：120 | ||
| Max. Rotation Speed Motor 2000min-1 |
r.p.m. | 33.3 | 22.2 | 16.6 | 16.6 | 16.6 | |
| Min. Increment | deg. | 0.001 | 0.001 | 0.001 | 0.001˚ / 5˚ | 0.001˚ / 5˚ | |
| Indexing Accuracy 0.001˚/5˚ |
arc-sec | 45 | 20 | 20 | 20 / 10 | 20 / 10 | |
| Repeatabilitiy Accuracy 0.001˚/5˚ |
arc-sec | 6 | 6 | 6 | 6 / 2 | 6 / 2 | |
| Clamping Torque | kgf-m | 12 | 90 | 153 | 80 | 80 | |
| Operating Hydraulic Pressure for Clamping Torque | kg/cm2 | 50 | 35 | 35 | 50 | 50 | |
| Clamping Torque for Tooth Plate | Hydraulic 35 kg/cm2 |
kgf | - | - | - | 2800 | 2800 |
| Permissible Cutting Force 0.001˚/5˚ |
kgf-m | 28 | 50 | 100 | 50 / 250 | 50 / 250 | |
| N.W. | kg | 30 | 77 | 410 | 460 | 450 | |
