Hydraulic Index Table

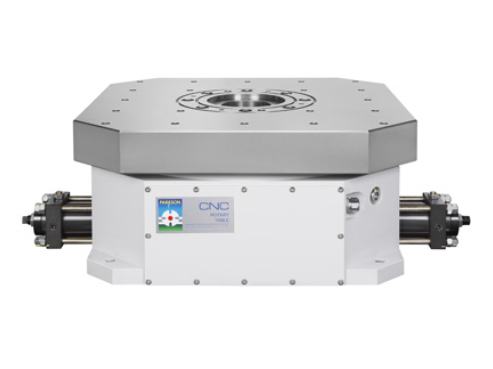

VLHI Series／ Hydraulic Index Table
VLHI-201~501
Product Feature
1. High accuracy and high rigidity.
2. Can turn clockwise and counter-clockwise. Low failure rate.
3.Applicable to round plate type special purpose machines and cutting machining centers.
Specification
|
Model Item |
Unit | VLHI-201 | VLHI-251 | VLHI-350 | VLHI-501 | VLHI-600 | VLHI-801 | ||
|---|---|---|---|---|---|---|---|---|---|
| Table Diameter |  |
mm | Φ200 | Φ250 | Φ350 | Φ500 | Φ600 | Φ800 | |
| Spindle Hole Diameter |  |
mm | Φ30H7 | Φ30H7 | Φ70H7 | Φ130H7 | Φ162H7 | Φ55H7 | |
| Trough Hole Diameter |  |
mm | Φ30 | Φ30 | Φ40 | Φ61 | Φ102 | - | |
| Overall Height in Vertical |  |
mm | 303 | 310 | 407 | - | - | - | |
| Overall Height in Horizontal |  |
mm | 175 | 180 | 220 | 235 | 280 | 305 | |
| Division Number | Standard | 4,6,8,12,24 Division (Alternative) | |||||||
| Special | 2,3,5,9,10…… Specially orders by customization | ||||||||
| Indexing Accuracy |  |
arc-sec | 8 | 8 | 10 | 10 | 10 | 10 | |
| Rotation Direction |  |
CW or CCW | CW or CCW | CW or CCW | CW or CCW | CW or CCW | CW or CCW | ||
| Max. Rotation Torque |  |
kgf-m | 25 | 25 | 60 | 80 | 100 | 300 | |
| Max. Sub -table outer diameter | mm | Φ550 | Φ550 | Φ700 | Φ900 | Φ1200 | Φ1500 | ||
| Max. Work Load | Normal |  |
kg | 70 | 70 | 200 | 300 | 600 | 1200 |
| Maximum | kg | 120 | 120 | 500 | 600 | 1200 | 2000 | ||
| Permisible Instant Inertia(GD2) | kg-m2 | 35 | 35 | 90 | 180 | 500 | 800 | ||
| Clamping Force | kg | 1100 | 1100 | 1350 | 3000 | 4100 | 4000 | ||
| Operating Pressure | kg-cm2 | 35 | 35 | 35 | 35 | 35 | 35 | ||
| Table Application | kg | Vertical or Horizontal | Vertical or Horizontal | Vertical or Horizontal | Horizontal | Horizontal | Horizontal | ||
| N.W. |  |
kg | 58 | 63 | 145 | 280 | 460 | 820 | |
1. Please contact us for more detailed specification.
2. PARKSON owns the rights to modify the drawing and specification.
3. Servo motors, drives, encoders and hydraulic units are excluded.
