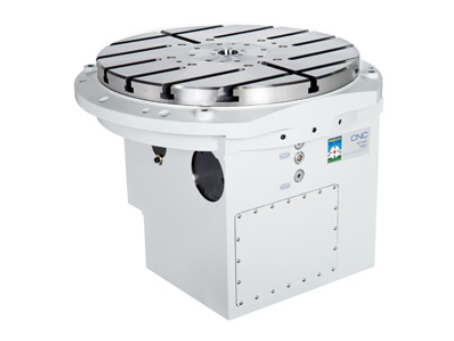

Horizontal CNC Rotary Table
HMC Series／Horizontal CNC Rotary Table
HMC-400~2000
Product Feature
1. Applicable for horizontal boring & milling machines.
2. Hydraulic clamping system.
3. Can do cutting and processing synchronously.
4. Can be cooperated with OEM/ODM.
Specification
|
Model Item |
Unit | HMC-400 | HMC-501 | HMC-631 | HMC-801 | HMC-1000 | HMC-1416 | HMC-1820 | HMC-2000 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pallet Diameter |  |
mm | 400×400 | 500×500 | 630×630 | 800×800 | 1000×1000 | 1400×1600 | 1800×2000 | 2000×2000 | |
| Spindle Hole Diameter |  |
mm | Φ55H7 | Φ50H7 | Φ55H7 | Φ50H7 | Φ55H7 | Φ140H7 | Φ160H7 | Φ160H7 | |
| Overall Height in Horizontal |  |
mm | 270 | 295 | 330 | 360 | 400 | 440 | 650 | 650 | |
| Width of T-slot |  |
mm | 14H7 | 18H7 | 18H7 | 20H7 | 22H7 | 24H7 | 28H7 | 28H7 | |
| Servo motor(Option) | FANUC | αiF12 | αiF12 | αiF22 | αiF30 | αiF30 | αiF30 | αiF30 | αiF40 | ||
| SIEMENS | 1FK7083 | 1FK7083 | 1FK7083 | 1FK7101 | 1FT6105 | 1FK7105 | 1FK7105 | 1FK7105 | |||
| Servo Motor Max. Rotation Speed |  |
r.p.m | 3000 | 2000 | 2000 | 2000 | 3000 | 1000 | 1000 | 1000 | |
| Total Reduction Ratio |  |
1：90 | 1：90 | 1：90 | 1：144 | 1：360 | 1：360 | 1：720 | 1：720 | ||
| Max. Rotation Ratio | |
r.p.m | 33.3 | 22.2 | 22.2 | 13.8 | 8.3 | 2.7 | 1.3 | 1.3 | |
| Min. increment |  |
deg. | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
| Indexing Accuracy |  |
arc-sec | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Repeatability Accuracy | arc-sec | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| Clamping Torque |  |
kgf-m | 197 | 270 | 510 | 830 | 1350 | 2100 | 2380 | 2380 | |
| Hydraulic Pressure | kg/cm² | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | ||
| Permissible Cutting Force |  |
kgf-m | 120 | 190 | 315 | 700 | 1100 | 1700 | 1790 | 1790 | |
| Max. Load (Put vertically) |  |
kg | 400 | 600 | 1200 | 2000 | 5000 | 10000 | 20000 | 20000 | |
| N.W. |  |
kg | 250 | 450 | 700 | 1125 | 1920 | 4300 | 8000 | 10500 | |
1. Please contact us for more detailed specification.
2. PARKSON owns the rights to modify the drawing and specification.
3. Servo motors, drives, encoders and hydraulic units are excluded.
