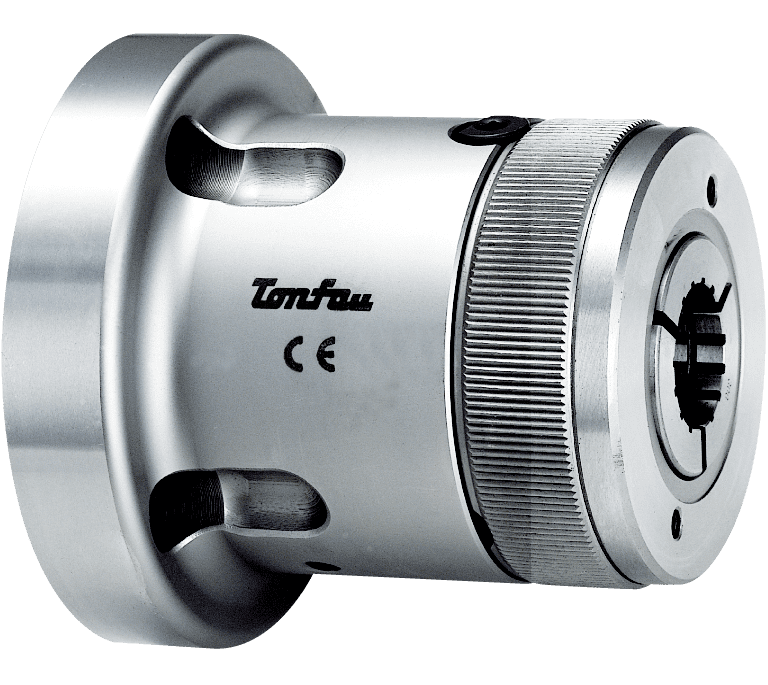

Dimensions
| Model/Dim | CL36-140D | CL42-140D | CL52-170D | CL60-170D |
|---|---|---|---|---|
| Steel Collet | 171E | 173E | 177E | 185E |
| A | 155 | 155 | 185 | 185 |
| B | 140 | 140 | 170 | 170 |
| C | 126 | 126 | 152 | 152 |
| D | 104.8 | 104.8 | 133.4 | 133.4 |
| E | M66xP1.5 | M66xP1.5 | M90xP1.5 | M90xP1.5 |
| F | 62 | 62 | 90 | 90 |
| G | M55xP2.0 | M55xP2.0 | M85xP2.0 | M85xP2.0 |
| H | 30 | 30 | 30 | 30 |
| K | 23 | 23 | 31 | 31 |
| L | 113.5 | 113.5 | 139 | 139 |
| M (Max) | 5 | 5 | 11 | 11 |
| M (Min) | 0 | 0 | 6 | 6 |
| d (Max) | 36 | 42 | 52 | 60 |
| O | 103 | 103 | 132 | 132 |
| N | 23 | 23 | 30 | 30 |
| P | 4-M10x25 | 4-M10x25 | 4-M12x25 | 4-M12x25 |
| Z | 6 | 6 | 6 | 6 |
