Rotary Cylinders
Rotary Cylinders Stroke Control
RS
Non-Thru-Hole Hydraulic
RS

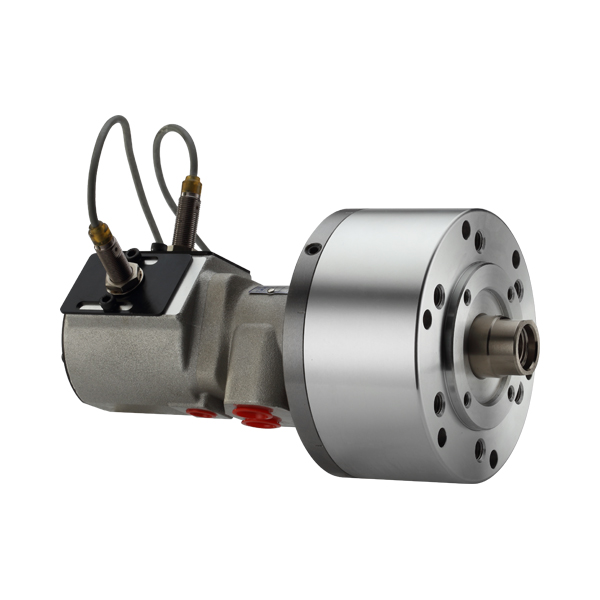

Short type Rotary Hydraulic Cylinder with Stroke Control and Safety Device
For short form, high speed and stroke control.
With proximity sensor , the movement of the position is easy to adjust and confirm when operating.
Built-in safety check valves and pressure relief valves.
Can screw it from the rear end of the cylinder when mounting.
The drain port should be independently connected to oil tank to avoid back pressure.
Specification
| Model | Eff. piston area cm2 Extend |
Eff. piston area cm2 Retract |
Piston stroke (mm) | Max. speed min-1(r.p.m.) |
Max. pressure MPa (kgf/cm2) |
I kg‧m2 Moment of inertia |
Weight kg |
|---|---|---|---|---|---|---|---|
| RS-75 | 43.0 | 37.1 | 15 | 6000 | 4.0 (40) | 0.01 | 3.4 |
| RS-100 | 77.4 | 71.5 | 20 | 6000 | 4.0 (40) | 0.04 | 4.9 |
| RS-125 | 121.6 | 113.1 | 25 | 6000 | 4.0 (40) | 0.05 | 7.4 |
| RS-150 | 175.6 | 160.8 | 30 | 5500 | 4.0 (40) | 0.10 | 10.7 |
| RS-200 | 313.0 | 290.4 | 35 | 5500 | 4.0 (40) | 0.29 | 15.9 |

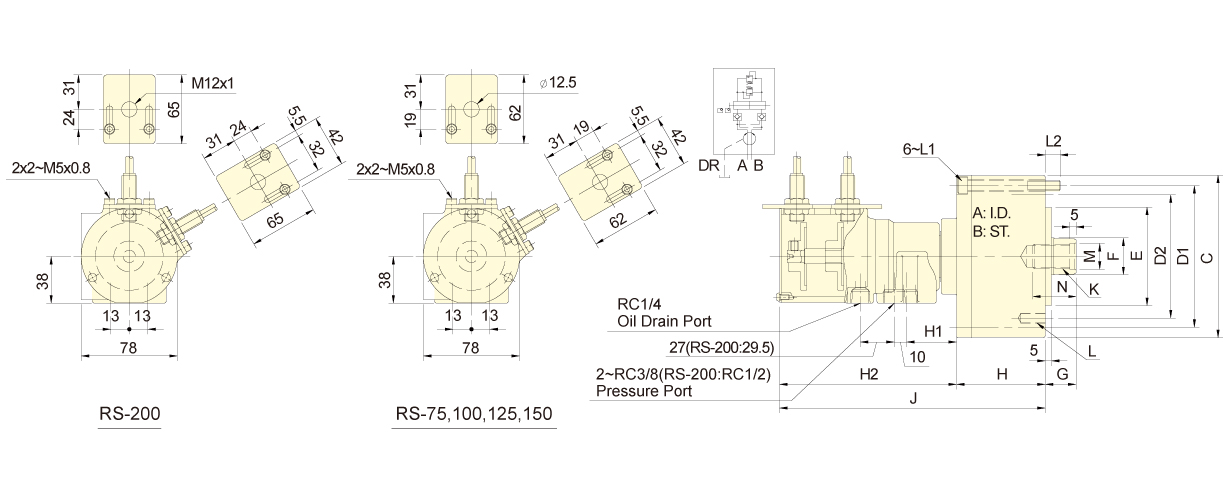

| Model | A | B | C | D1 | D2 | E h7 |
F | G max. | G min. | H | H1 | H2 | J | K | L | L1 | L2 | M H8 |
N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RS-75 | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 42 | 145 | 202 | M20x2.5 | 6~M8x16 | M8x60 | 12 | 21 | 35 |
| RS-100 | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 42 | 145 | 217 | M20x2.5 | 6~M10x20 | M8x75 | 12 | 21 | 35 |
| RS-125 | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 41 | 144 | 226 | M24x3.0 | 6~M12x20 | M8x85 | 12 | 25 | 45 |
| RS-150 | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 39 | 142 | 237 | M30x3.5 | 12~M12x24 | M10x100 | 16 | 32 | 45 |
| RS-200 | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 115 | 34 | 142.5 | 257.5 | M36x4.0 | 12~M16x30 | M10x125 | 21 | 38 | 60 |
