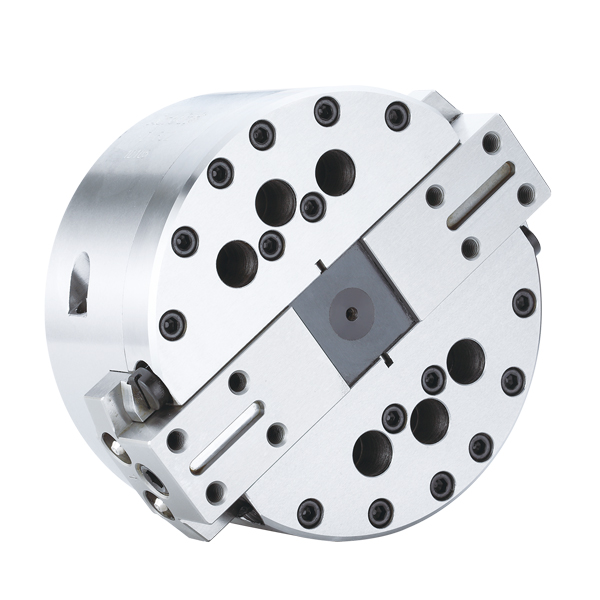

Double Slide Facing Head
Feed mechanism is transmitted by Crank with steady feed speed. Simple adjustment for feed speed and stroke.
Matching surfaces of all parts hardened, grounding and lubricated directly. With rigidity and durability.
Stopper accurancy: ±0.03mm.
Suitable for using with RS type cylinder.

Specification

Model Plunger stroke(Dia.)
(mm)
Slider stroke(Dia.)
(mm)
Max. speed
min -1(r.p.m.)
Max. feed speed
mm/min.
Weight
(kg)
Matching cylinder Max. pressure
MPa (kgf/cm2)
FD-632 20 32 3200 300 13.6 RS-1030N 2.4(24)
FD-840 25 40 2500 240 30 RS-1030N 3.0(30)
FD-1060 35 60 1800 200 41.5 RS-1040N 3.0(30)

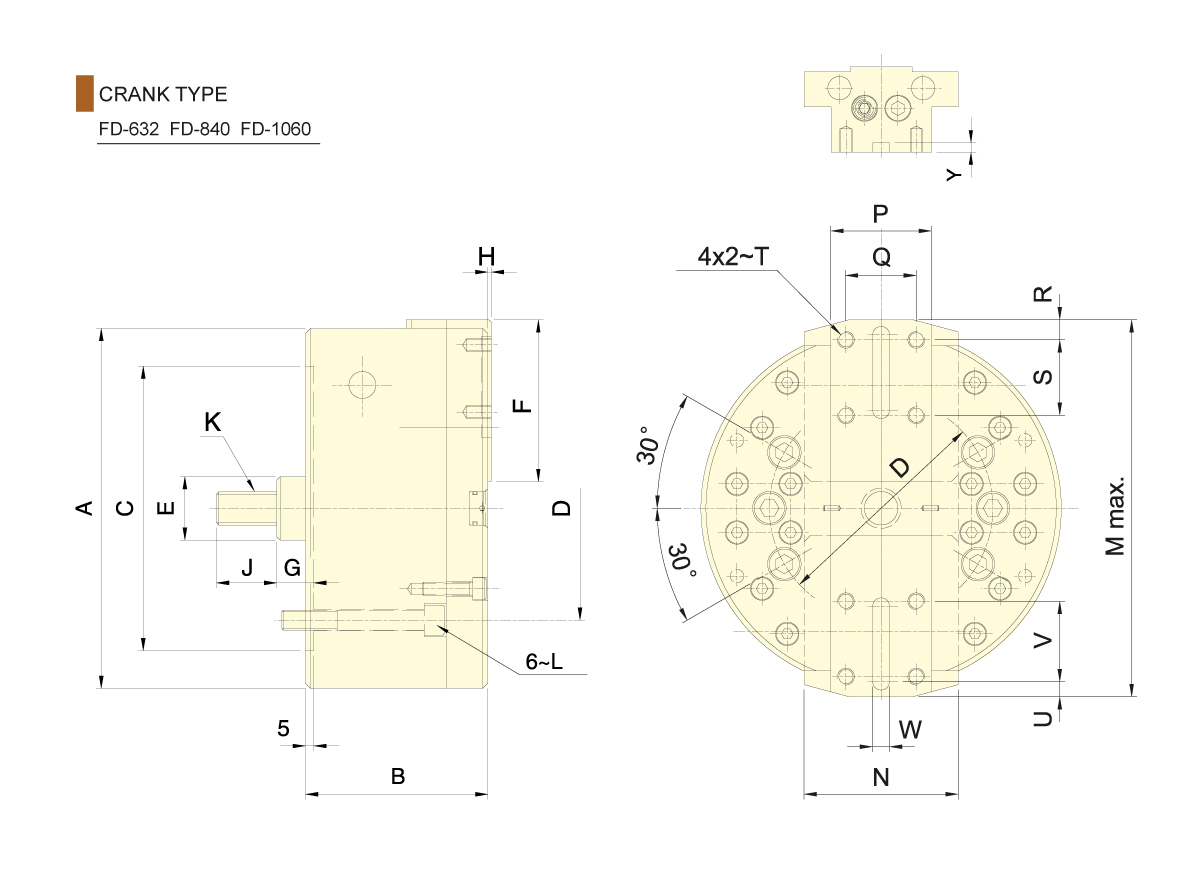

Model A B C(H7) D E F G max. G min. H J K
FD-632 168 93 140 104.8 32 76 31 11 2 36 M16x2.0
FD-840 215 109 170 133.4 38 96.5 32.5 7.5 2 36 M20x2.5
FD-1060 254 123 220 171.4 38 110.5 32.5 -2.5 4 36 M20x2.5



Model L M N P Q R S T U V W(H8) Y
FD-632 6~M10x75 188 70 40 25 10 32 M8x15 10 32 6 4
FD-840 6~M12x85 238 92 60 42 12 45 M10x15 12 45 10 6
FD-1060 6~M16x125 286 90 65 46 15 50 M10x15 12 50 10 6
