Power Chuck High Speed Thru-Hole Power Chuck
3H-2/3H-2A
WEDGE-HOOK type 2-Jaw Thru-Hole Power Chuck
WEDGE-HOOK type 2-jaw with the large through-hole.
Matching surfaces of all parts hardened, ground and lubricated directly.
Construction of high rigidity and high clamping accuracy.
J is the hole diameter of blank draw nut, K is the maximum thread specification, and it could be customize.
Specification
| Model | Plunger stroke (mm) |
Jaw stroke (Dia.) (mm) |
Chucking Dia. Max. (mm) | Chucking Dia. Min. (mm) | Max. D.B. pull kN (kgf) |
Max. clamping force kN (kgf) |
Max. speed min-1(r.p.m.) | I kg‧m 2 |
Weight (kg) | Weight (kg) | Matching cyl. | Max. pressure MPa (kgf/cm2) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2H-204 | A4 | 13 | 5.5 | 113 | 7 | 9.2 (940) |
19.4 (1980) |
8000 | 0.012 | 4.2 | 4.8 | TK-A528 | 1.3(13) |
| 2H-205 | A4 | 13 | 5.5 | 138 | 10 | 11.4 (1167) |
32 (3260) |
7000 | 0.02 | 6.8 | 7.6 | TK-A533 | 1.6(16) |
| 2H-206 | A5 | 14 | 6 | 170 | 13 | 15.5 (1580) |
44.4 (4530) |
6000 | 0.06 | 13.1 | 14.9 | TK-A646 | 1.6(16) |
| 2H-208 | A5 | 18 | 7.6 | 210 | 17 | 23.1 (2360) |
57.3 (5840) |
5000 | 0.17 | 21.3 | 24.2 | TK-A853 | 1.8(18) |
| 2H-208 | A6 | 18 | 7.6 | 210 | 17 | 23.1 (2360) |
57.3 (5840) |
5000 | 0.17 | 21.3 | 22.4 | TK-A1075 | 1.5(15) |
| 2H-10 | A6 | 19 | 8.8 | 254 | 25 | 28.4 (2900) |
73.9 (7540) |
4200 | 0.31 | 33.5 | 40.5 | TK-A1075 | 1.9(19) |
| 2H-10 | A8 | 19 | 8.8 | 254 | 25 | 28.4 (2900) |
73.9 (7540) |
4200 | 0.31 | 33.5 | 39 | TK-A1075 | 1.9(19) |
| 2H-12 | A8 | 23 | 10.6 | 304 | 34 | 36.7 (3740) |
95.8 (9780) |
3300 | 0.70 | 59.7 | 62.7 | TK-A1291 | 1.7(17) |
| 2H-15 | A8 | 23 | 10.6 | 381 | 50 | 46.9 (4790) |
119.6 (12200) |
2500 | 2.42 | 115 | 129 | TK-A1512 | 1.5(15) |
| 2H-15 | A11 | 23 | 10.6 | 381 | 50 | 46.9 (4790) |
119.6 (12200) |
2500 | 2.34 | 115 | 122 | TK-A1512 | 1.5(15) |

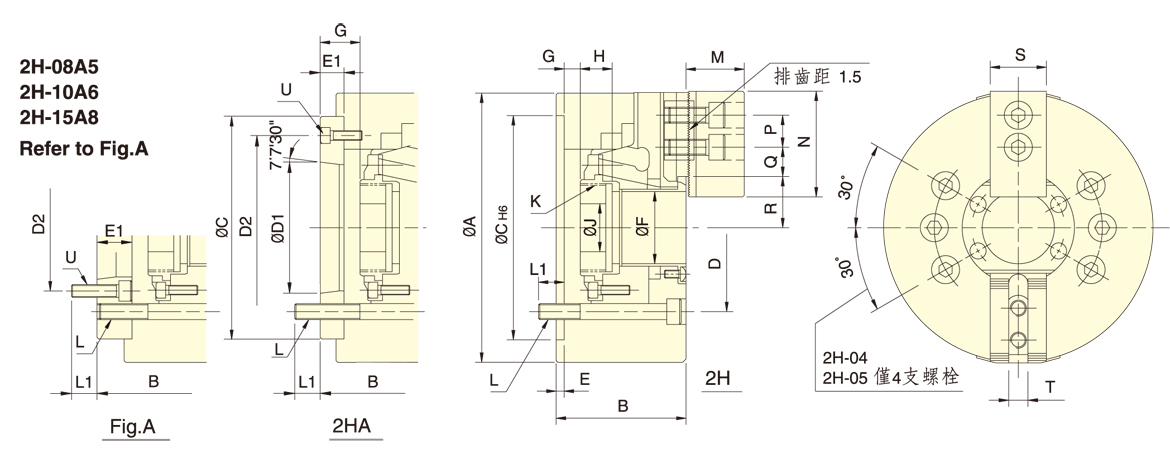

| Model | A | B | B | C | D | D1 | D2 | E | E1 | F | G max. | G max. | G min. | G min. | H | J | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2H-204 | A4 | 113 | 59 | 83 | 85 | 70.6 | 65.31 | 82.6 | 4 | 28 | 32 | 3.5 | 31.5 | -9.5 | 18.5 | 17.5 | 12 |
| 2H-205 | A4 | 138 | 60 | 71 | 110 | 82.6 | 65.31 | 96 | 4 | 15 | 39 | 1 | 16 | -12 | 3 | 20 | 12 |
| 2H-206 | A5 | 170 | 81 | 91 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 53 | 13 | 28 | -1 | 14 | 17.5 | 20 |
| 2H-208 | A5 | 210 | 91 | 109 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 66 | 16.5 | 39.5 | -1.5 | 21.5 | 20 | 30 |
| 2H-208 | A6 | 210 | 91 | 103 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 66 | 16.5 | 33.5 | -1.5 | 15.5 | 20 | 30 |
| 2H-10 | A6 | 254 | 100 | 120 | 220 | 171.4 | 106.38 | 133.4 | 5 | 25 | 75 | 8.5 | 33.5 | -10.5 | 14.5 | 25 | 45 |
| 2H-10 | A8 | 254 | 100 | 113 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 75 | 8.5 | 26.5 | -10.5 | 7.5 | 25 | 45 |
| 2H-12 | A8 | 304 | 110 | 122 | 220 | 171.4 | 139.72 | 190 | 6 | 18 | 91 | 8 | 26 | -15 | 3 | 28 | 50 |
| 2H-15 | A8 | 381 | 133 | 160 | 300 | 235 | 139.72 | 171.4 | 6 | 33 | 120 | 11 | 44 | -12 | 21 | 39 | 60 |
| 2H-15 | A11 | 381 | 133 | 149 | 300 | 235 | 196.87 | 260 | 6 | 22 | 120 | 11 | 33 | -12 | 10 | 39 | 60 |
| Model | K | L | L1 | L1 | M | N | P | Q max. | Q min. | R max. | R min. | S | T | U | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2H-204 | A4 | M38x1.5 | 4~M10 | 16 | 15 | 24 | 52 | 14 | 12.75 | 6.75 | 25 | 22.25 | 23 | 10 | 3~M10 |
| 2H-205 | A4 | M45x1.5 | 4~M10 | 15 | 15 | 31 | 62 | 14 | 20.25 | 6.75 | 29.5 | 26.75 | 25 | 10 | 3~M6 |
| 2H-206 | A5 | M60x2 | 6~M10 | 16 | 16 | 37 | 73 | 20 | 22.75 | 9.25 | 36 | 33 | 31 | 12 | 3~M6 |
| 2H-208 | A5 | M75x2 | 6~M12 | 17 | 18 | 38 | 95 | 25 | 23.7 | 10.2 | 45.7 | 41.9 | 35 | 14 | 6~M10 |
| 2H-208 | A6 | M75x2 | 6~M12 | 17 | 15 | 38 | 95 | 25 | 23.7 | 10.2 | 45.7 | 41.9 | 35 | 14 | 3~M6 |
| 2H-10 | A6 | M85x2 | 6~M16 | 22 | 18 | 43 | 110 | 30 | 33.8 | 14.3 | 51 | 46.6 | 40 | 16 | 6~M12 |
| 2H-10 | A8 | M85x2 | 6~M16 | 22 | 24 | 43 | 110 | 30 | 33.8 | 14.3 | 51 | 46.6 | 40 | 16 | 3~M8 |
| 2H-12 | A8 | M100x2 | 6~M16 | 23 | 25 | 51 | 130 | 30 | 45.8 | 15.8 | 61.3 | 56 | 50 | 21 | 3~M8 |
| 2H-15 | A8 | M130x2 | 6~M20 | 30 | 24 | 63 | 165 | 43 | 47.3 | 18.2 | 80 | 74.7 | 62 | 25.5/22 | 6~M16 |
| 2H-15 | A11 | M130x2 | 6~M20 | 30 | 28 | 63 | 165 | 43 | 47.3 | 18.2 | 80 | 74.7 | 62 | 25.5/22 | 3~M10 |
The dimensions and the specifications of 2H-A are in the red data.
