Collet Chucks
Collet Chucks Stationary
SCB

Thru-Hole
SCB
STATIONARY DRAW COLLET CHUCK
Build-in cylinder, ideal for drilling machines, milling machines and machining centers.
Work with Autogrip’s rubber collet(RG series), quick change and saving runtime.
Two modes for the media supply: side-supply mode or baseplate-supply mode.

Specification

Model Jaw stroke(Dia.)
(mm)
Max. Chucking Capacity
(mm)
Max. clamping force
kN (kgf)
Weight
kg
Matching steel collet Max. pressure
M PA (kgf/cm2)
Round Hexagom Square
SCB-52 ±0.5 4~52 7~45 7~36 80(8150) 8.6 RG-52 4.0(40)
SCB-65 ±0.5 4~65 8~56 8~46 105(10700) 10.2 RG-65 4.2(42)

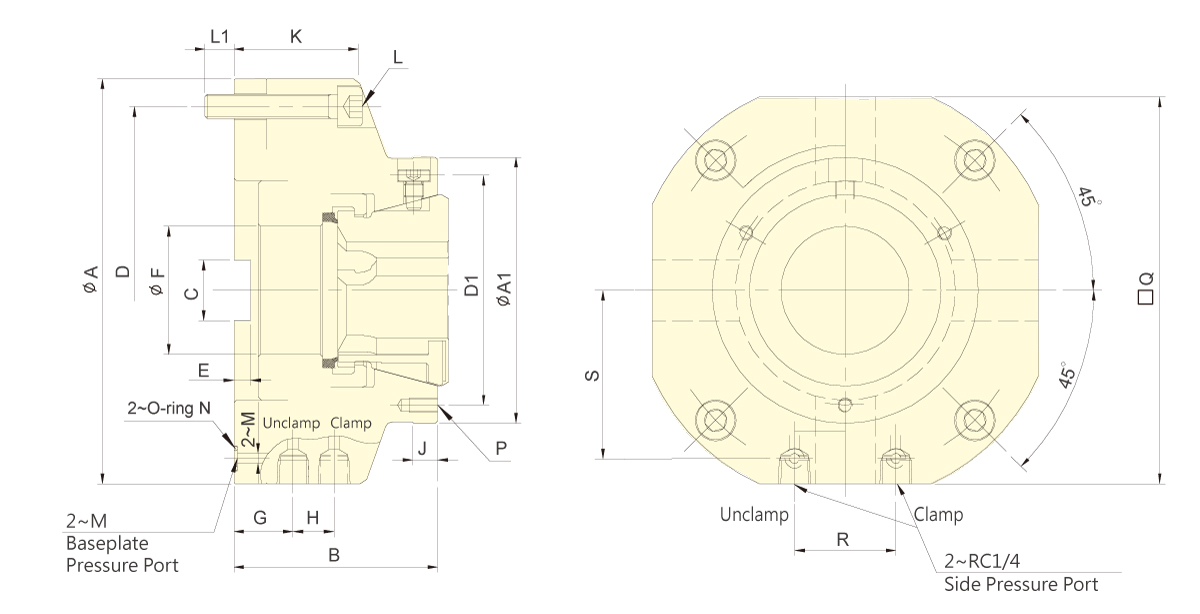

Model A(g6) A1 B C D D1 E F G H
SCB-52 175 110 84.5 25 152 95 7 53 24.5 17
SCB-65 192 130 94 30 169 114 9 66 26.5 20



Model J K L L1 M N P Q R S
SCB-52 10 51.5 4~M10 12 4.2 P7 3~M6x12 160 42 69.5
SCB-65 10 61.5 4~M10 12.5 4.2 P7 3~M6x12 175 50 77
