4-Axis ／ 5-Axis CNC Rotary Table Pneumatic Brake

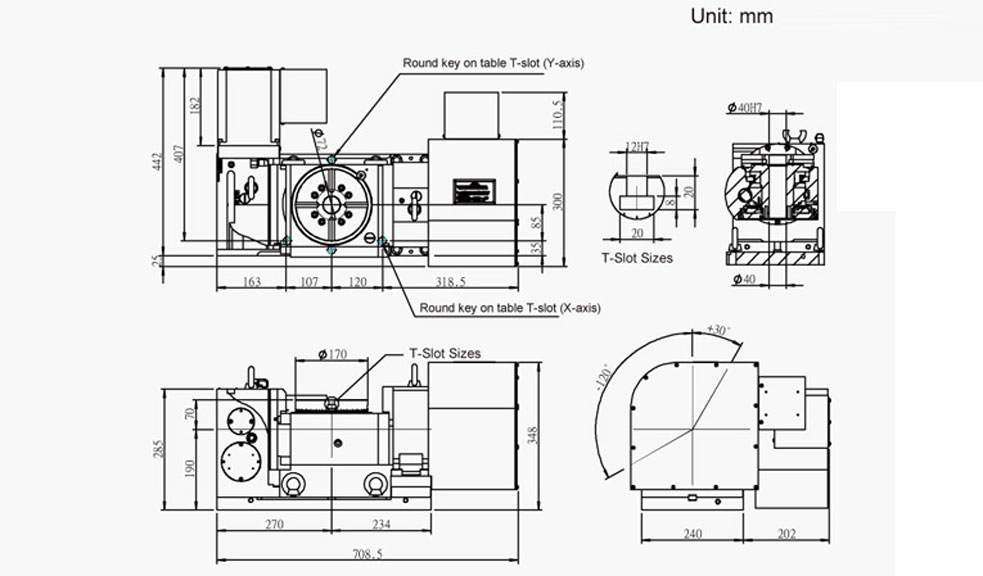

FEH-170
FEH
Table diameter provides a choice of Ø170mm.
Employs high rigidity, extra large radial and axial bearing.
Upon customer request, models with Ø170, Ø210, Ø250 can be equipped with Japanese made worm I worm gear.
For models over 170, all support units employ the full circumference brake and large hole Japanese-made roller bearing.
Specification
| MODEL | UNIT | FEH-170 | |||
|---|---|---|---|---|---|
| Table diameter | mm | Ø170 | |||
| Center hole diameter | mm | Ø40H7 | |||
| Through-hole diameter | mm | Ø40 | |||
| 90° Vertical height | mm | 190 | |||
| 0° horizontal height | mm | 260 | |||
| T-slot width of table | mm | 12H7 | |||
| Guide key width on tilting axis | mm | Ø18h7 | |||
| Min.setting angle | deg. | 0.001 | |||
| Servo motor model | Motor Brand |
Tilt axis |
Swiveling axis(Stra.) | ||
| FANUC | α4i / ß8is | α4i / ß8is | |||
| Mitsubishi | HF-104T HF-154T |
HF-104S | |||
| Positioning accuracy | sec. | 60 | 20 | ||
| Repeatability | sec. | 8 | 6 | ||
| Clamping torque | Pneu. 5~7kg/cm² | N.m | - | 250 | |
| Hyd. | N.m | 400 (20-25 kg/cm²) |
- | ||
| Teeth ratio | - | 1:90 | 1:90 | ||
|
Max. table speed (FANUC a motor) |
rpm | 33.3 | 33.3 | ||
| Allowable load capacity | 0° Horizontal | kg | 65 | ||
| 0°-90°Vert. | kg | 50 | |||
| Allowable cutting force (Clamped status) |
F | N | 7000 | ||
| FxL | N.m | 300 | |||
| FxL | N.m | 350 | |||
| Allowable torque on worm gear | N.m | 170 | |||
| Tilting angle | kg/cm² | +30~-120 | |||
| Allowable inertia | J=W.D²/8 | deg. | 0.25 | ||
| Weight (Motor excluded) | kg | 170 | |||
