Tooth Type Rotary Table

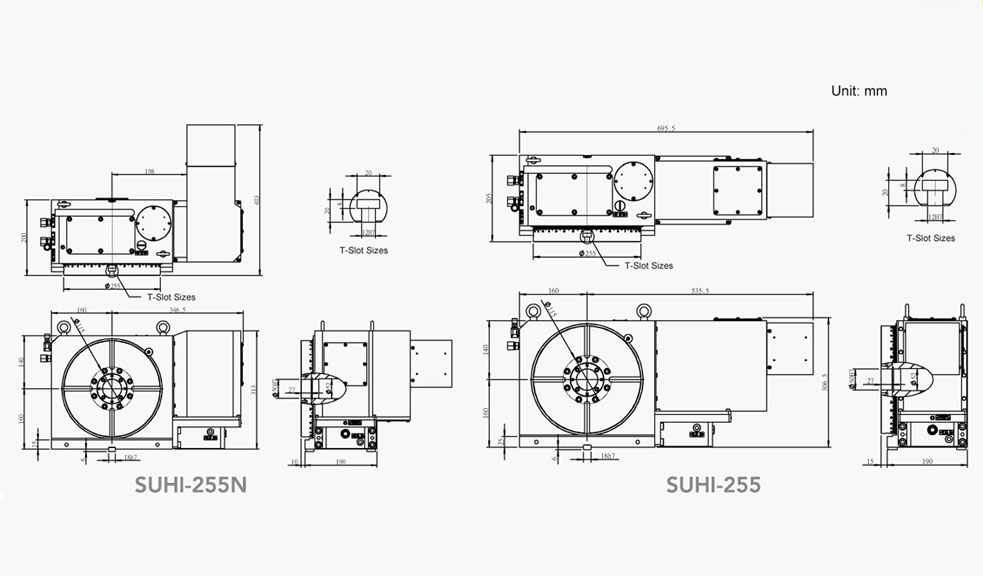

SUHI-255N
SUHI
Table diameter provides a choice of Ø255mm.
Choice of indexing accuracy of 1° or 5°.
Employs three-piece clutch gear with accuracy reaching ±5 sec.
Upon request, Japanese made worm/worm gear are available.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.
Specification
| MODEL | UNIT | SUHI-255 | ||
|---|---|---|---|---|
| Table diameter | mm | Ø255 | ||
| Center hole diameter | mm | Ø50H7 | ||
| Through-hole diameter | mm | Ø50 | ||
| Height of center(Vertical) | mm | 160 | ||
| Height of f table (Horizontal) | mm | 205 | ||
| T-slot width of table | mm | 12H7 | ||
| Width of guide block | mm | 18h7 | ||
| Min. increment | deg. | 1° or 5° | ||
| Indexing accuracy | sec. | ±5 | ||
| Repeatability | sec. | ±1 | ||
| Clamping method | Hyd. pressure | kg/cm² | 35 | |
| Clamping torque | N.m | 1750 | ||
| Servo motor model | FANUC | - | α4i / ß8is | |
| Mitsubishi | - | HF-154S | ||
| Teeth ratio | - | 1 : 120 | ||
| Max.table speed(FANUC a motor) | rpm | 33.3 | ||
| Allowable load capacity | Vertical | kg | 125 | |
| Horizontal | kg | 300 | ||
| With tail stock | kg | 300 | ||
| Allowable cutting force(Clamped status) | F | N | 16000 | |
| FxL | N.m | 1750 | ||
| FxL | N.m | 3000 | ||
| Allowable torque of worm gear | N.m | 250 | ||
| Allowable inertia | J=W.D²/8 | kg.m² | 3 | |
| Weight (Motor excluded) | kg | 125 | ||
