4-Axis ／ 5-Axis CNC Rotary Table Pneumatic Brake
CTH-255
CTH
Ø255mm table diameter.
Employs high rig idity, extra large radial and axial bearing.
Upon request, Japanese made worm/worm gear are available.
Various sheet metal guards are available to suit various models of motors. Contact us for detail.
Angle is set manually through a worm/ worm gear mechanism, which increases tilting strength and helps to support the weight of the rotary table.

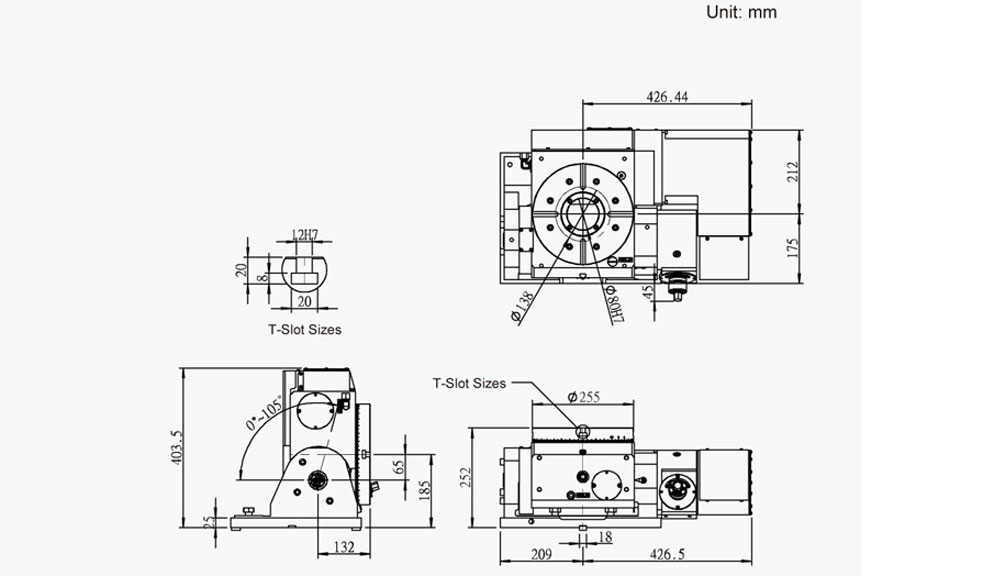

Specification
| MODEL | UNIT | CHT-255 | |||
|---|---|---|---|---|---|
| Table diameter | mm | Ø255 | |||
| Center hole diameter | mm | Ø80H7 | |||
| Through-hole diameter | mm | Ø80 | |||
| Height of table(Horizontal) | mm | 252 | |||
| Swiveling axis center to table center | mm | 132 | |||
| Height of table(Vertical) | mm | 185 | |||
| Swiveling axis center to table center | mm | 65 | |||
| T-slot width of table | mm | 12H7 | |||
| Guide key width on tilting axis | mm | 18h7 | |||
| Min. setting angle | deg. | 0.001 | |||
| Servo motor model | Motor Brand | Swiv.axis(Stra.) | Tilt.axis(Manu.) | ||
| FANUC | α4i / ß8is | - | |||
| Mitsubishi | HF-104S | ||||
| Positioning accuracy | sec. | 15 | |||
| Repeatability | sec. | 4 | |||
| Clamping torque | N.m | 600 | |||
| Clamping method | kg/cm² | 35(Hyd.) | |||
| Teeth ratio | - | 1:72 | |||
| Max. table speed(FANUCa motor) | rpm | 33.3 | |||
| Allowable load capacity | 0°Hori. | kg | 150 | ||
| 0°-90°Tilting | kg | 80 | |||
| Allowable cutting force (Clamped status) |
F | N | 20000 | ||
| FxL | N.m | 1120 | |||
| FxL | N.m | 700 | |||
| Allowa.ble torque on worm gear | N.m | 500 | - | ||
| Tilting angle | deg. | 0°~105° | |||
| Weight (Motor excluded) | kg | 165 | |||
