Tooth Type Rotary Table

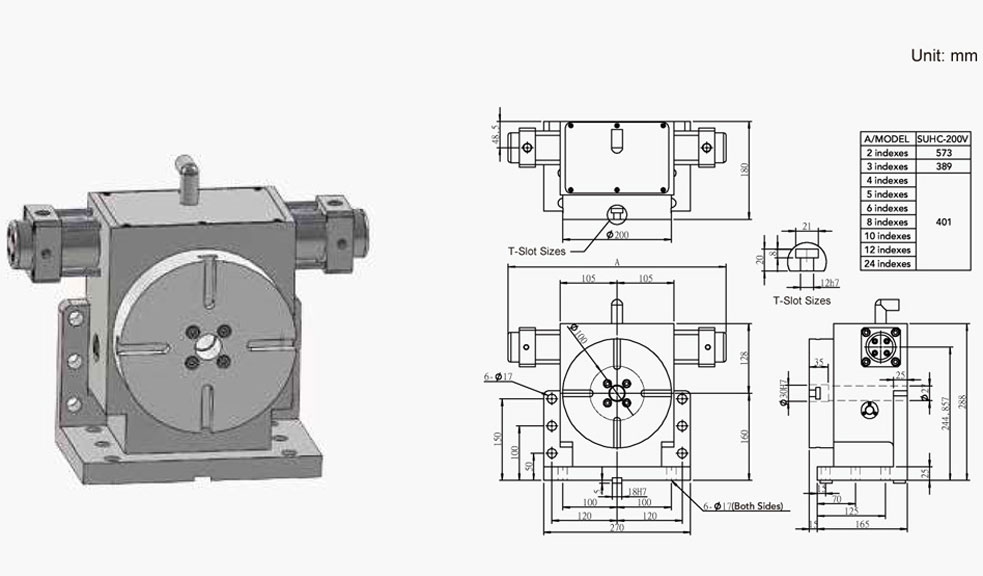

SUHC-200V
SUHC
Table diameter provides a choice of Ø200mm, etc.
Employs three-piece clutch gear with accuracy reaching ±5 sec. Suitable for heavy cutting.
Choice of 4, 6, 8, 12 and 24 indexes.
Choice of special indexes 2, 3, 5, 9 . ...
Specification
| MODEL | UNIT | SUHC-200V | ||
|---|---|---|---|---|
| Table diameter | mm | Ø200 | ||
| Center hole diamet | mm | Ø30H7 | ||
| Center hole depth | mm | 35 | ||
| Through hole diameter | mm | Ø27 | ||
| Height of center (Vertical) | mm | 160 | ||
| Height of table (Horizontal) | mm | 180 | ||
| T-slot width of table | mm | 12H7 | ||
| Width of guide block | mm | 18h7 | ||
| Indexing number (Standard) | - | 4/6/8/12/24(Standard indexes) | ||
| Indexing number (Spec.) | - | 2/3/5/9(Special indexes) | ||
| Indexing accuracy | sec. | ±5 | ||
| Repeatability | sec. | ±2 | ||
| Clamping method | Hyd. pressure | kg/cm² | 35 | |
| Unclamp / clamp time | s | 0.7/0.1 | ||
| Time of rotating90° | s | 1.5 | ||
| Clamping torque | kg-m | 25 | ||
| N | 245 | |||
| Allowable instant inertia | J=W.D²/8 | kg-m² | 7 | |
| Allowable load | Vertical | kg | 95 | |
| Horizontal | kg | 120 | ||
| Allowable cutting force (Clamped status) |
F | kgf | 1260 | |
| N | 12348 | |||
| FxL | kgf.m | 55 | ||
| N.m | 539 | |||
| FxL | kgf.m | 108 | ||
| N.m | 1058 | |||
| Weight (Motor excluded) | kg | 55 | ||
