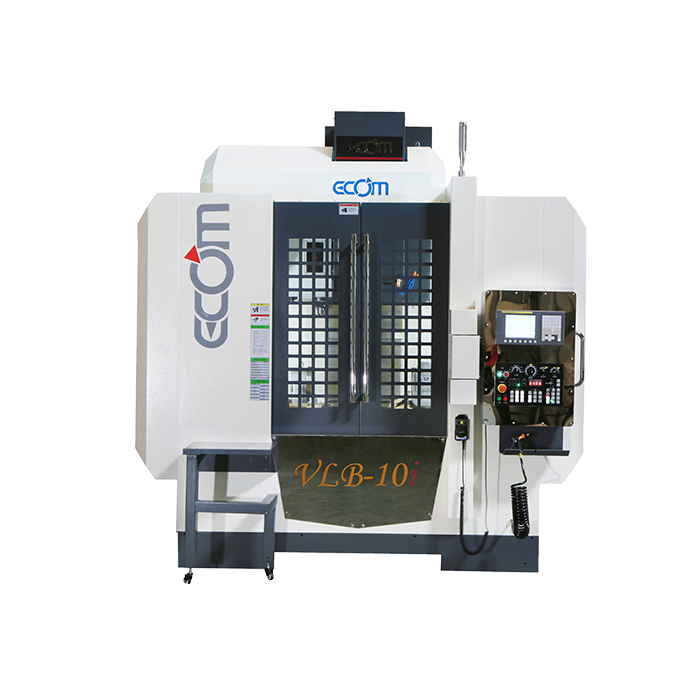

The VLB i Series offers optimum alignment of the motor and gearbox ensures no offset and guarantees steady smooth movement of the headstock along the Z-axis. This design significantly reduces torsion on the headstock and ensures optimum rigidity, long term accuracy, and repeatability. Large diameter pre-tensioned ballscrews have a double-nut preloaded design eliminating the potential thermal growth and promote high accuracy and high-speed positioning.
The X&Y roller linear guideways fully support the machine’s saddle and worktable, delivering outstanding X&Y-axis accuracy over the full travel range of the machine. This is critical during machining heavy workpieces. It can avoid deflection and is a key factor in maintaining part accuracy and precision. The Z sliding surface areas and gibs are coated with Turcite-B and hand-scraped for perfect fit and alignment.
| Travel | X Axis Travel | 1000mm | |
|---|---|---|---|
| Y Axis Travel | 600mm | ||
| Z Axis Travel | 560mm | ||
| Spindle Center To Z-Rail | 650mm | ||
| Spindle Nose to Table | 150-710mm | ||
| Table | Table Size | 1120 X 600mm | |
| T - Slot(number*width*pitch) | 5*18mm*100mm | ||
| Max. Table Load | 800kg | ||
| Spindle | Spindle Taper | BT-40 | |
| Spindle RPM | 50-10000rpm | ||
| Type of Driving | Belt Type | ||
| Feed Rate | X.Y Axis Rapid Feed Rate | 36m/min | |
| Z Axis Rapid Feed Rate | 20m/min | ||
| X.Y.Z Max. Cutting Feed Rate | 10m/min | ||
| Automatic Tool Changer | Arm Type(Tool to Tool) | 24T (3sec) | |
| Max. Tool Diameter*Length(with neighbor) | Φ150X300mm(Φ78X300mm) | ||
| Max. Tool Weight | 8 kg | ||
| Motors | MITSUBISHI | FANUC | |
| Spindle Motor (RATED/MAX) | 7.5 /11kW | 11/15kW | |
| X.Y Axis Servo Motor | 2.0 kW | 3.0 kW | |
| Z Axis Servo Motor | 3.0kW BS | 3.0kW BS | |
| Machine Accuracy | Positioning Accuracy(JIS) | ± 0.005mm / 300mm | |
| Repeat Poitioning Accuracy(JIS) | ± 0.003mm | ||
| Other | Approximated Weight | 7000kg | |
| Floor Space Measurement | 2890*3480*2850mm | ||
Above specification are subject to change without prior notice.
