5-Axis Gantry Machining Center
5-Axis Gantry Machining Center GT-3662
GT-3662

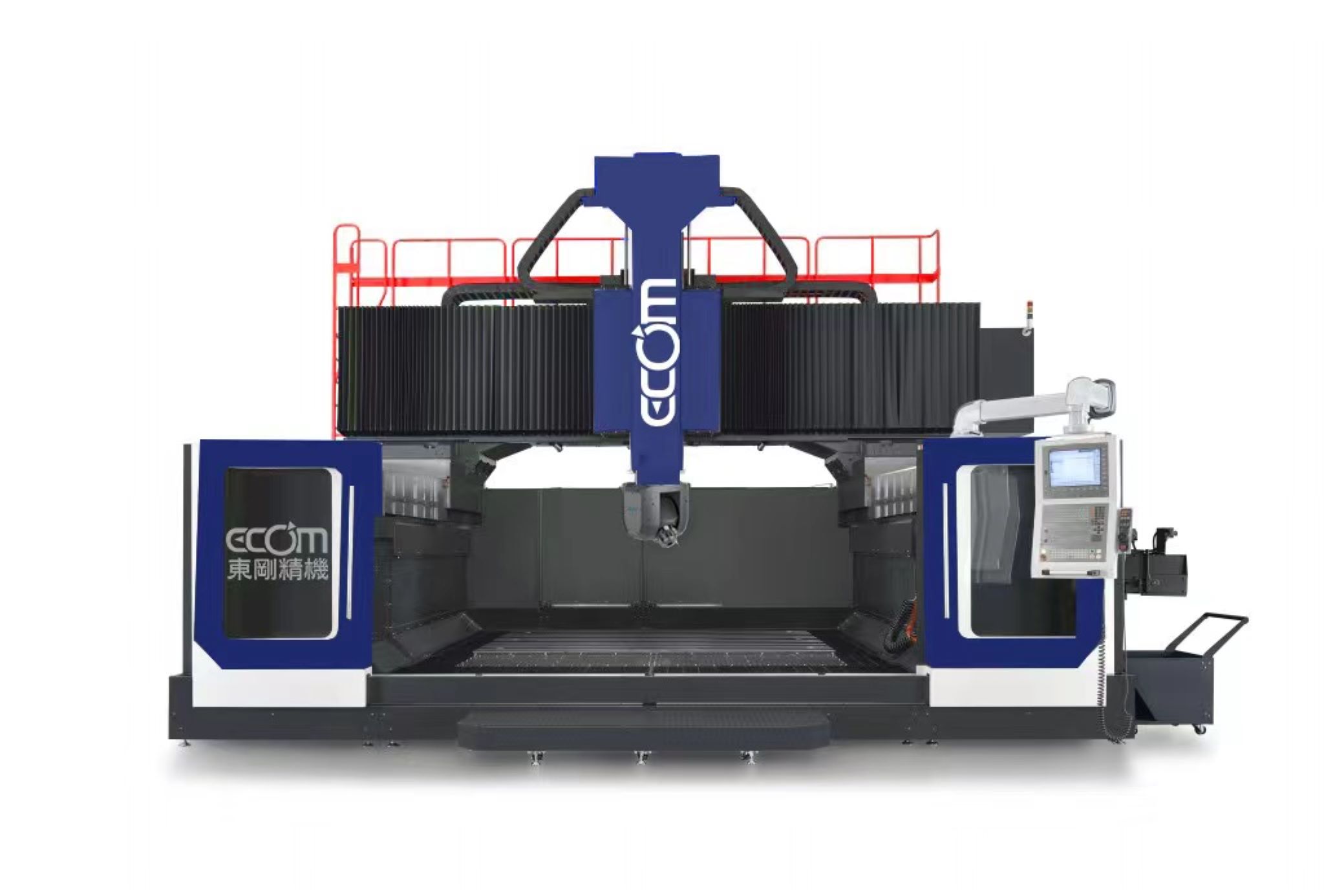

ECOM GT-3662 , U-shape structure 5 axis gantry type machining center, provided excellent 5-axis simultaneous accuracy performance for 5-axis machining in mold cutting, highly precise contour finishing, milling, drilling, and tapping. This gantry 5 axis CNC machine to shorten tool displacement travel and cutting process effectively and extend tool life and offer the best choice for composite angle machining.

Industries Applications:

Automotive- Stamping Die
Aerospace- Aluminum Machining
Machine Component

Specification

Specifications
GT-3662
Travel X - Axis Travel 6200mm
Y - Axis Travel 3600mm
Z - Axis Travel 1500mm
Dolumn Distance 4500mm
Working Space 3600X6200X1900mm
Spindle Nose To Table 400-1900mm
Table Table Size 6000x3500mm
T - Slot 32mmx250mmx18T
Maximum Table Load 8000kg / M²
Spindle Spindle Taper HSK-63A
Type Of Driving Built-in Type
Spindle speed 18000rpm
Feed Rate Rapid traverse(X.Y.Z)axis X:12 Y:12 Z:12(m/min)
Cutting feedrate 1~8000(mm/min)
Type Of Driving X Axis Type Of Driving Gear Ratio (1:20)
Y Axis Type Of Driving Gear Ratio (1:3)
Z Axis Type Of Driving Direct Drive
Automatic tool changer Max.tool Diameter Ø78 (Full) ~ Ø150mm (Empty)
Max.tool Length 300mm
Max.tool Weight 8kg
Motors   SIEMENS ONE
Spindle Motor 30kW / 72Nm
X Axis Servo Motor 5.5kW(36Nm)
Y Axis Servo Motor 7.7kW(48Nm)
Z Axis Servo Motor 7.7kW(48Nm)BS
Machine Accuracy Positioning Accuracy (JIS) ±0.01/300;±0.02/Full travel
Repeat Poitioning Accuracy (JIS) ±0.005mm
Others Coolant tank capacity (pump) 300L (1000W)
Hydraulic fluid tank capacity 160L (7500W)
Pneumatic supply ≧ 6.5Kg/c㎡
Floor Space Measurement 10320X6280X4900mm
Machine weight (approximate) 60000KG

Above specification are subject to change without prior notice.
