High-Speed VMC (linear/box)

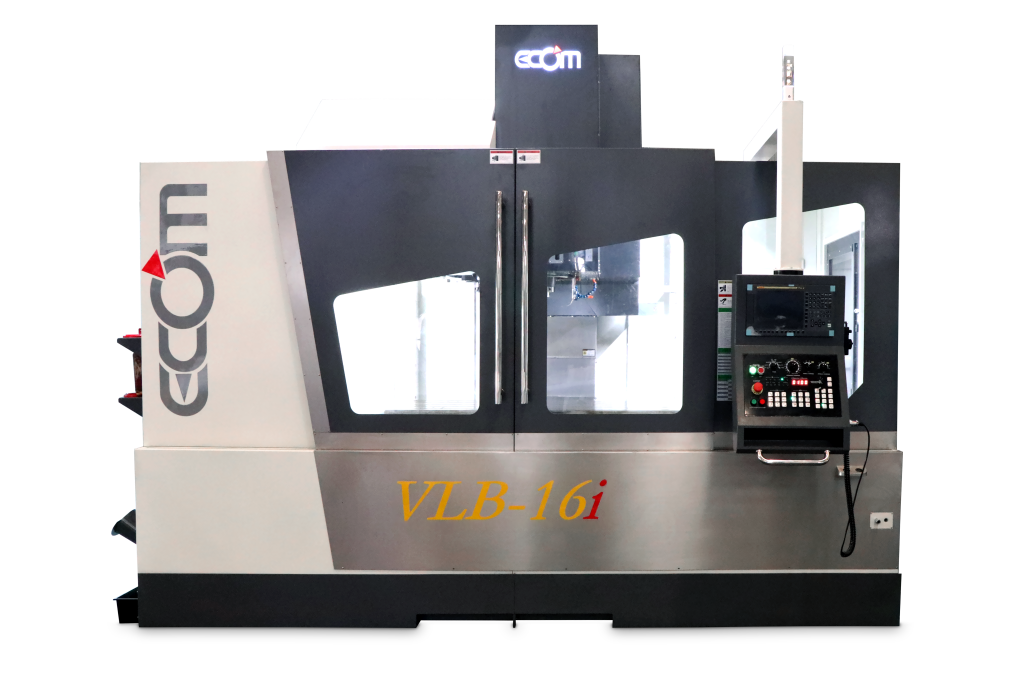

High-Speed VMC (linear/box) VLB-16i
VLB-16i

The VLB i Series offers optimum alignment of the motor and gearbox ensures no offset and guarantees steady smooth movement of the headstock along the Z-axis. This design significantly reduces torsion on the headstock and ensures optimum rigidity, long term accuracy, and repeatability. Large diameter pre-tensioned ballscrews have a double-nut preloaded design eliminating the potential thermal growth and promote high accuracy and high-speed positioning.

The X&Y roller linear guideways fully support the machine’s saddle and worktable, delivering outstanding X&Y-axis accuracy over the full travel range of the machine. This is critical during machining heavy workpieces. It can avoid deflection and is a key factor in maintaining part accuracy and precision. The Z sliding surface areas and gibs are coated with Turcite-B and hand-scraped for perfect fit and alignment.

Specification

Specifications
VLB-16i
Travel X - Axis Travel 1600mm
Y - Axis Travel 750mm
Z - Axis Travel 650mm
pindle Center To Z - Rail 830mm
Spindle Nose To Table 120 - 770mm
Table Table Size 1700 X 750mm
T - Slot (number*width*pitch) 5*18mm*150mm
Maximum Table Load 1500kg
Spindle Spindle Taper BT-50
Spindle RPM 50-8000rpm
Type Of Driving Belt type(OP: Direct type)
Feed Rate X. Y Axis Rapid Feed Rate 24m/min
Z Axis Rapid Feed Rate 20m/min
X. Y. Z Max.Cutting Feed Rate 10m/min
Automatic tool changer Arm Type (Tool to Tool) 24T  (4.5sec)
Max. Tool Diameter*Length(adjacent) Φ220X350mm(Φ110X350mm)
Max. Tool Weight 15 kg
Motor   MITSUBISHI FANUC
Spindle Motor 15/18.5kW 15/18.5kW
X. Y Axis Servo Motor 4.5kW 3.0kW
Z Axis Servo Motor 4.5kW BS 3.0kW BS
Machine Accuracy Positioning Accuracy (JIS) ± 0.005mm / 300mm
Repeat Poitioning Accuracy (JIS) ± 0.003mm
Others Approximate Weight 11000kg
Floor Space Measurement 5000*3510*3150mm

Above specification are subject to change without prior notice.
