High-Speed Vertical Machining Center (linear)

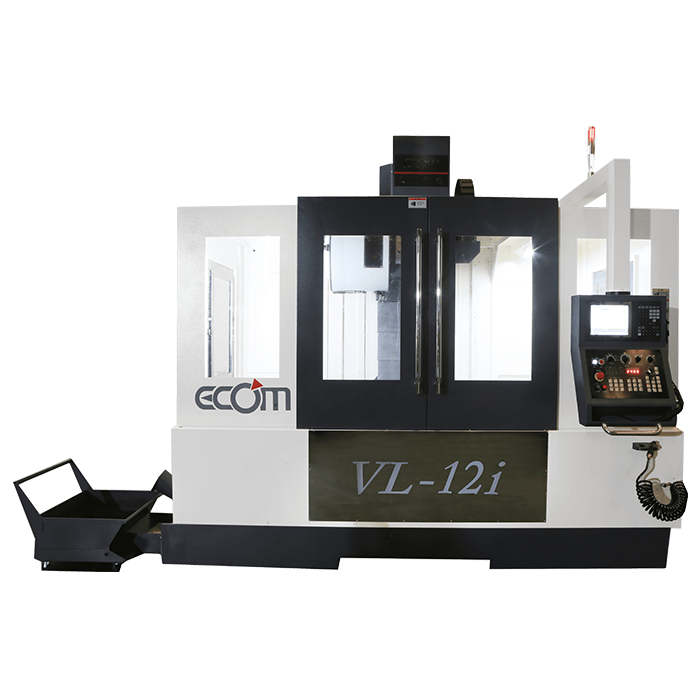

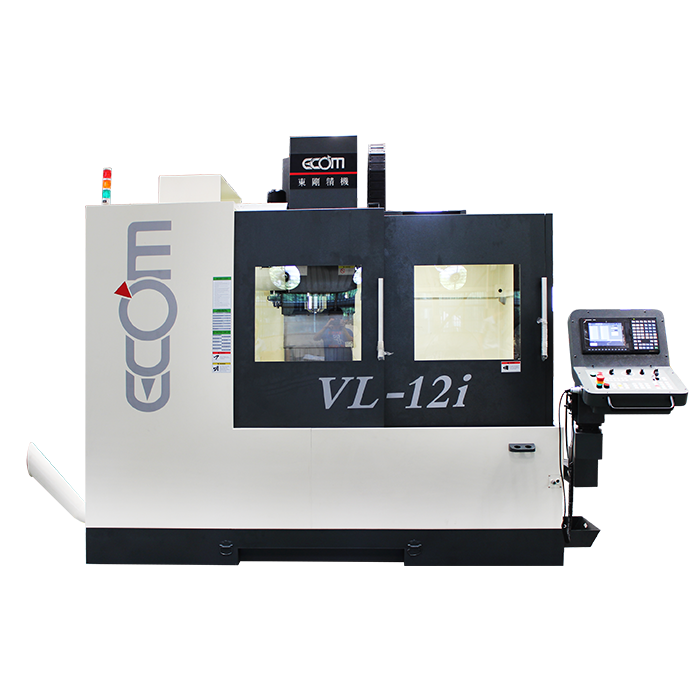

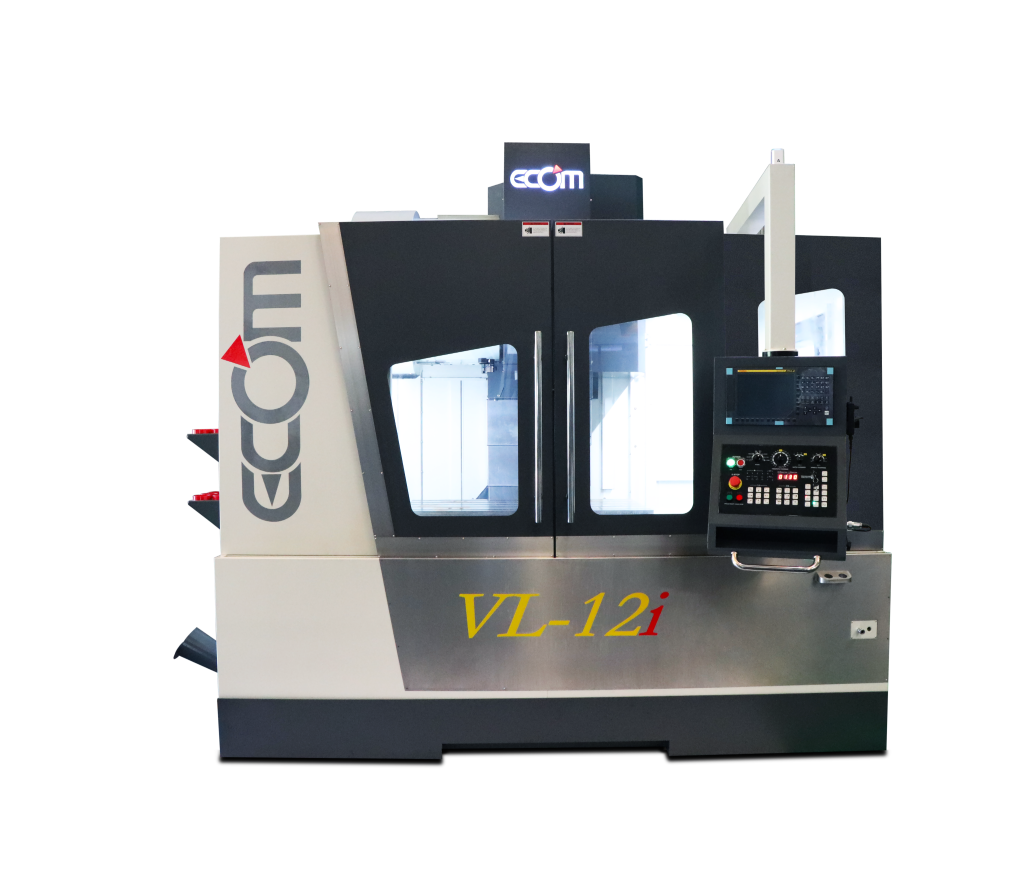

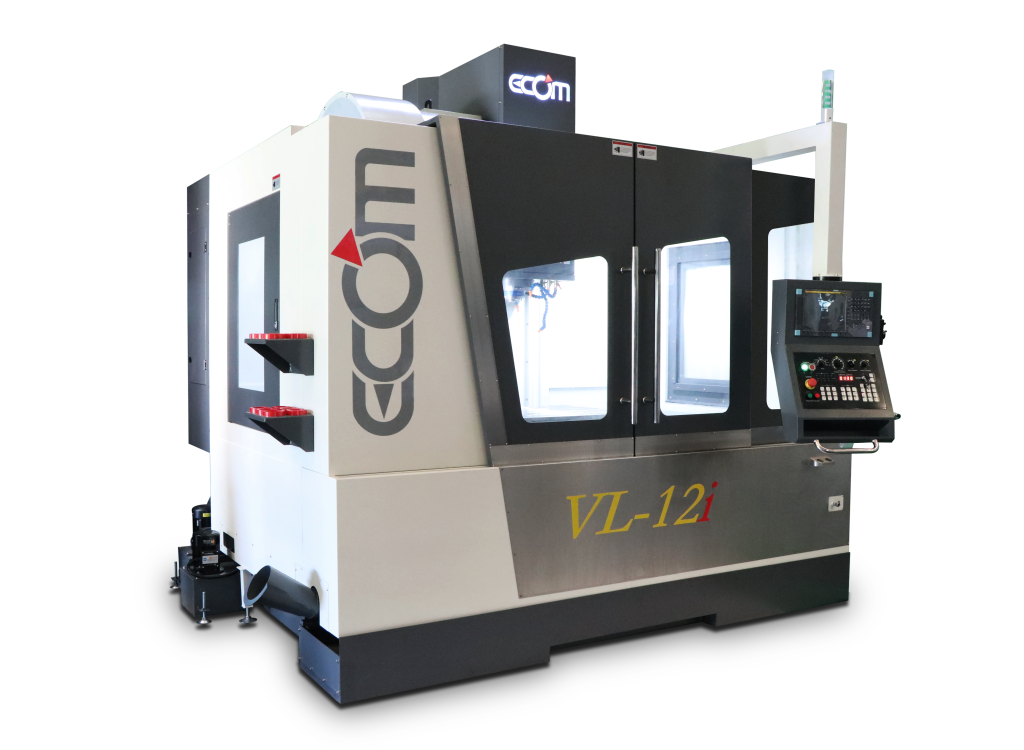

High-Speed Vertical Machining Center VL-12i
VL-12i

ECOM Precision VL-i Series is a combination of speed, rigidity, and precision. It eliminates vibration, ensuring excellent surface finishes and long cutting tool life. Adhering to our outstanding quality and development experience on the vertical machining centers for many years, the series of vertical high-speed machining centers can provide your customers a faster processing efficiency and more machining quality.

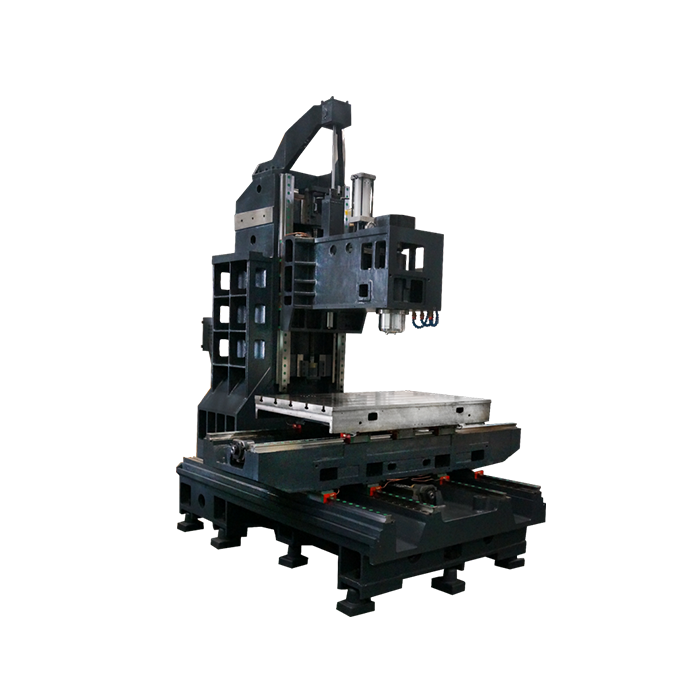

The VL-i model comes with a high-performance roller linear guideway for all 3-axis. It provides fast & accurate rapid feed, and also the allowance of heavy workpiece Z-axis.

The 3-axis pre-loaded C3 class high precision ballscrews all has been well pre-extension, and directly coupled to A/C servo motors. It significantly eliminates backlash and ensures the highest rigidity.

The large-diameter ultra precision ballscrews directly coupled to the feed motor and are arranged in the center of each guideway and close to the cutting point.

Specification

Specifications
VL-12i
Travel X - Axis Travel 1200mm
Y - Axis Travel 750mm
Z - Axis Travel 700mm
pindle Center To Z - Rail 830mm
Spindle Nose To Table 120 - 820mm
Table Table Size 1300 X 750mm
T - Slot (number*width*pitch) 5*18mm*150mm
Maximum Table Load 1200kg
Spindle Spindle Taper BT-40
Spindle RPM 50-10000rpm
Type Of Driving Belt Type
Feed Rate X. Y Axis Rapid Feed Rate 30m/min
Z Axis Rapid Feed Rate 30m/min
X. Y. Z Max.Cutting Feed Rate 10m/min
Automatic tool changer Arm Type (Tool to Tool) 24T  (3sec)
Max. Tool Diameter*Length(adjacent) Φ150X300mm(Φ78X300mm)
Max. Tool Weight 8 kg
Motor   MITSUBISHI FANUC
Spindle Motor 11/15kW 11/15kW
X. Y Axis Servo Motor 3.0kW 3.0kW
Z Axis Servo Motor 3.0kW BS 3.0kW BS
Machine Accuracy Positioning Accuracy (JIS) ± 0.005mm / 300mm
Repeat Poitioning Accuracy (JIS) ± 0.003mm
Others Approximate Weight 9500kg
Floor Space Measurement 3940*3410*3150mm

Above specification are subject to change without prior notice.
