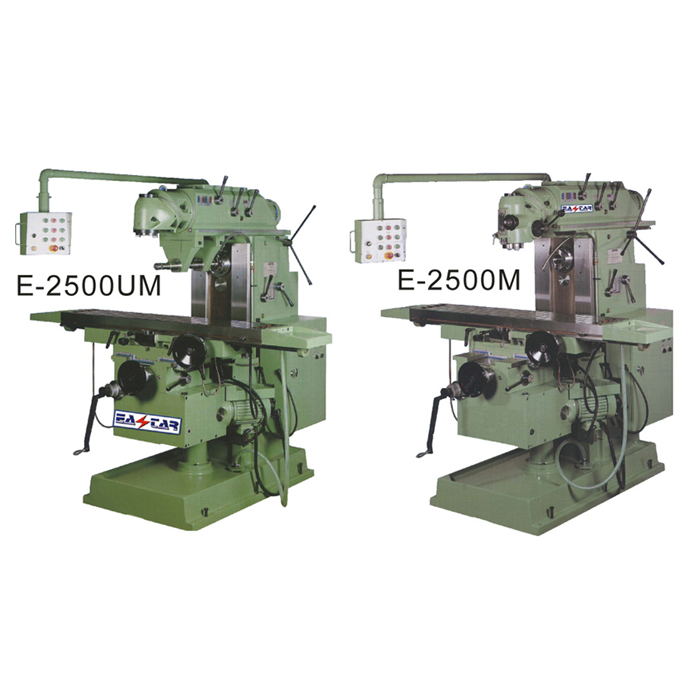

Rapid traverse on "X","Y" & "Z" axis
Variable speeds on "X","Y" & "Z" axis
High quality meehanite casting body GC-45/DIN-40
All gears & shafts are hardened.
Table swivels ± 45° degrees left & right
All "X", "Y" & "Z" wider square slide ways & table surface are
harden & ground
Motorized ARM/RAM elec. Motor is 3.75KW (5.5HP)
Horizontal spindle elec. Motor is 5.5KW (7.5HP)
All square slide way & dovetail way are bigger & stronger
Cast iron is either ASTM No.40/meehanite GC-45 or DIN GG-40
TABLE
Table area : 1500 x 350mm
Number of "T" shaped slots : 5-16H7
Distance between "T" shaped slots : 60mm
Rotary movement of table in both direction : 45°
TRAVERSE
Automatic longitudinal : 1150mm
Automatic cross : 400mm
Automatic vertical : 500mm
Available distance from spindle to overarm : 155mm
SPINDLE
Housing of the taper spindle : ISO-40/50
Diameter of the main shaft nose : 88.88-128.57mm
Milling arbor diameter : 27mm
Number of speeds of the spindle (R.P.M.) :12(40-1800)50Hz
FEEDS
Longitudinal and cross feeds : 10-1208
Vertical feed : 5-604
RAPID TRAVERSE
Longitudinal and cross : 1208mm/min(60Hz)
Vertical : 604mm/min
PUISSANCE
V-Belts : 4
Main motor HP : 7.5
Feed motor HP :2
COOLING
Cooling-pump HP : 1/8
MOTORIZED OVERARM
Housing of the taper spindle : ISO-40/50
Number of peeds : 12
Speed range (R.P.M.) : (35-1600) 50HZ
Power HP : 5.5
WEIGHT
Maximum weight on table : 700kg
Net weight : 3500kg
Gross weight with seapacking case : 3800kg
Cubical measure of packing : 2.3x1.6x2.2m
Standard Accessories:
* 27mm or 1" long horizontal ISO#40 milling arbor
* Horizontal & vertical manual draw-bars
* Coolant pump & Coolant system
* Tool box and services tools
Optional Accessories:
* AC auto feed device is available
* Ball screws for "X" "Y" axis
* Auto ways lubrication unit
* Chip tray
* Universal dividing head. Complete with 3 JAW chuck
* Horizontal & vertical rotary table
* Hydraulic clamping vise 6" or 8"
* Power milling vise 6" or 8"
* Clamping kit
* Pneumatic power draw bar
* ISO #50 spindle taper
