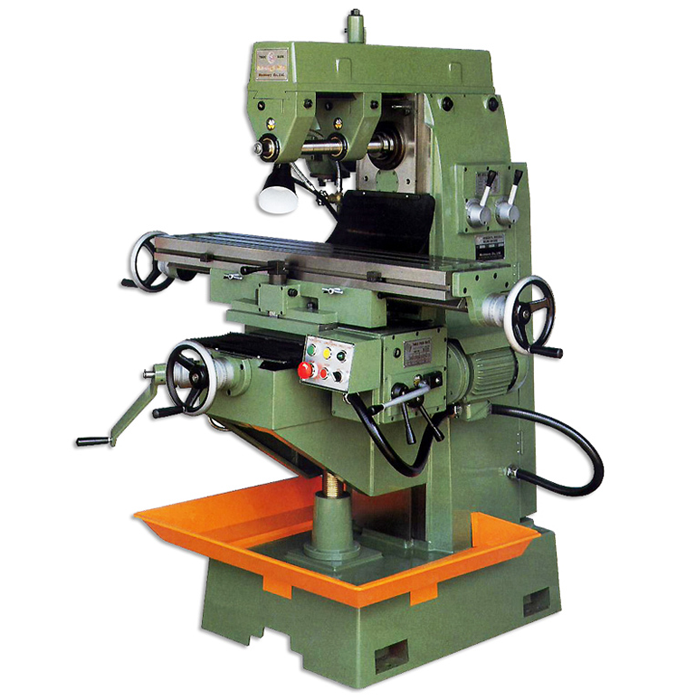

Universal Knee Type Mill
UM-2

* This machine is designed specially for performing miscellaneous milling operations such as vertical milling, horizontal milling, inclination work, boring,drilling and engraving etc.,



* Powerful vertical milling head is attached on horizontal spindle, directly drive by spindle. So it is very powerful and most suitable for heavy duty machining.



* Vertical milling head is able to swivel both sides of 90° and suit to any inclined machining. Over arm may be moving in-or-out to set it on the desire position.



* Horizontal milling's spindle have 6 or 12 speeds for change, and it's fly wheel device make machine have more stronger cutting ability.



* The left-right motion ca be feed automatically by gear box unit. It's include 6 or 12 speeds and one rapid movement speed.



* M/C's cross & knee way std. feed is by manually, but we offer wide option to you can choice power feed unit or gear box type feeding unit to let M/C feed automatically.


Specification

HORIZONTAL MAIN SPINDLE

Range of spindle speeds(rpm)(60HZ/50HZ) :(65~2020)/(55~1690) 12STEPS

Taper of spindle bore :ISO40

Spindle Center to table :0~420mm (0"~12-19/32")

Spindle center to overarm bottom : 120mm (5")

TABLE

Working surface of table : 300x1200mm(12"x47-1/4")

Longitudinal travel : 700mm(27-1/2")

Cross travel : 260mm(10-1/4")

Vertical travel : 420mm(17")

Range of longitudinal feed speed(mm/min)(60Hz) :21~492 (12 steps)

Range of longitudinal rapid speed(mm/min)(60Hz) : 2056

Table can swivel(R & L) :±45°

MOTOR

Horizontal milling (vertical milling head) : 4HP

Table longitudinal feed : 1 HP

Coolant pump : 1/8 HP

Netweight(approx.) : 1200 KGS

Gross weight(approx.) : 1350 KGS

Dimension of packing case : 152x118x174cm (60”x46”x68”)



Standard Equipment

1. Coolant equipment

2. Cutter arbor

3. Cutter sleeve

4. Tool box with adjusting tool

5. Vertical head



Optional Accessories

1. Gear box auto feed (Y Axis)

2. Servo motor auto Feed(Y,Z Axis)

3. Digital readout

4. Splash guard
