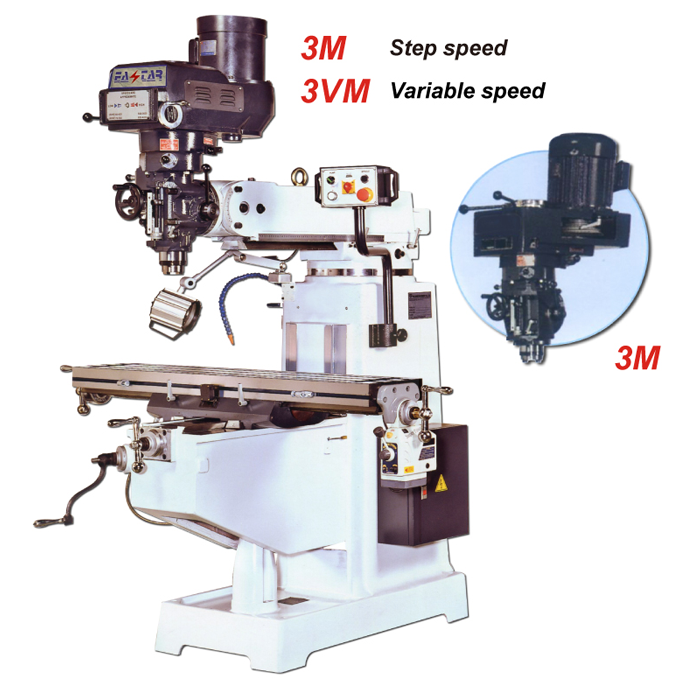

TABLE

Table size : 1270x254 mm (50"x10")
           1370x254 mm (54"x10") OPT.

No. of T-slots : 3

T-slots width : 16

Slideway hardened & surface ground : YES

Table surface hardened & ground : YES

Slideway dovetail "V" or square "SQ" : XYZ=V

MANUAL TRAVELS

X axis : 800 / 915 (OPT.)

Y axis : 380

Z axis : 430

Distance from spindle nose to table surface : 50~480

Distance from spindle center to column : 140~660

Travel reduced with power feed (X axis) : 60

Head swivel angle(R/L) : ±90

Head tilting angle(up/down) : ±45

Ram travel : 508

SPINDLE

Main Motor : 3HP / 5HP(opt.)

Spindle speeds r.p.m(Step Pully) :

50HP - 70-2310-8S/70-4620-16S /70-2850-10S
60HZ/80-2720-8S  /80-5440-16S  /80-3600-10S

Spindle speeds r.p.m(Mechanical Variable) : 50HZ/60-3600 ; 60HZ/70-4200
Spindle speeds r.p.m(Inverter Variable) : 70-4200(50HZ/60HZ)

Spindle taper : R8 or ISO30 or ISO40(opt)

Spindle travel : 127

Quill feed rate : 0.04,0.08,0.15mm/rev

Quill diameter : 85.7

Machine net weighet(kgs) : 1000

Standard Accessories

1-Harden/ground on X,Y,Z axis

2-X,Y axis coated with turcite B

3-Chip rudder covers (front & rear)

4-One shot lubrication

5-Arbor drawbar

6-Tool box with tools

7-Forward/off/reverse switch

Optional Accessories

1-Electric control box with panel

2-Coolant pump

3-Z axis rapid up/down lifting motor

4-Splash guard

5-Auto lubrication

6-Halogen work lamp

7-Power feed for X, Y axis

8-Gear type power table feed for X,Y axis

9-Air power drawbar

10-Riser block

11-Digital readout system

12-Safety spindle guard

13-CE standard
