Angle head

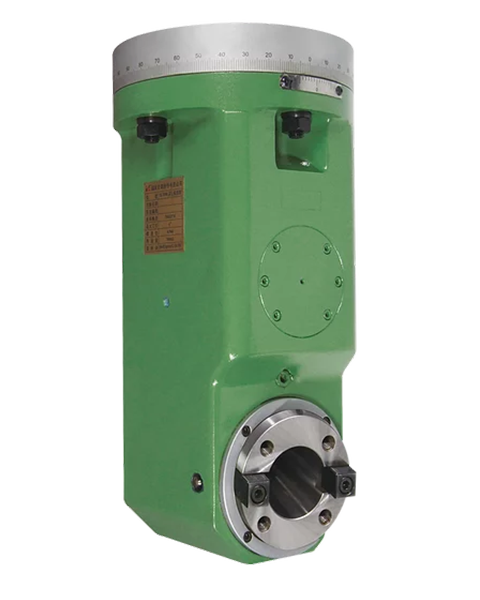

90° Deep Head
IK-D90/ IK-D90-L

IK-D90
1. Deep processing angle head suitablel in all type of milling heads, can change the processing angle and also bring the powerful and high-quality cutting benefits for machine.
2.This product uses for Japanese gear grinding, so the spindle speed can up to 2000rpm and also can bring the powerful and high-quality cutting benefits for machine.

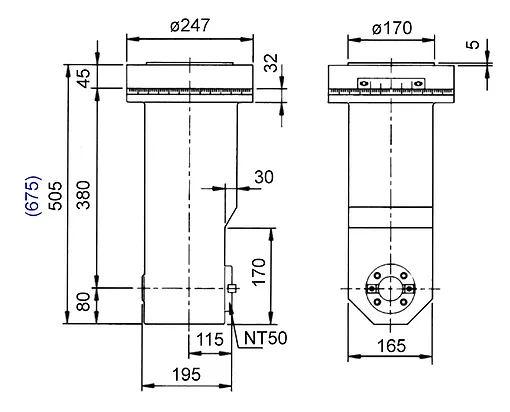

3. The milling length is 505mm.
4. Deep heads offer 800rpm or 2000rpm of model for you to optional.
5. There are 2 models in IK Deep Head series.

IK-D90-L
1. Deep processing angle head suitablel in all type of milling heads, can change the processing angle and also bring the powerful and high-quality cutting benefits for machine.
2.This product uses for Japanese gear grinding, so the spindle speed can up to 2000rpm and also can bring the powerful and high-quality cutting benefits for machine.
3. The milling length is 675mm.
4. Deep heads offer 800rpm or 2000rpm of model for you to optional.
5. There are 2 models in IK Deep Head series.

Specification

Model Unit IK-D90 / IK-D90-L
ANGULAR HEAD
Spindle Bore Diameter   NT50
Speed Ratio   1:1
Max Diameter of Cutter mm 150
Max Speed rpm 800 / 2000

Country of Origin Taiwan
Weight (Approximate) kg 98
Warranty 1 year (non artificial mistake)
