Angle head

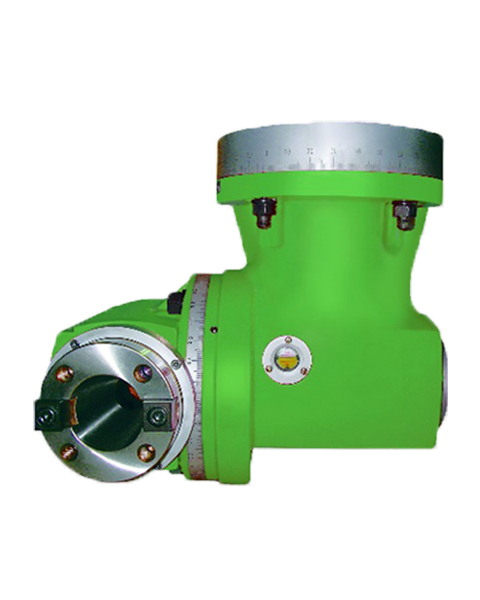

90° Universal Head
IK-U90

1. Universal processing angle head suitable in all type of milling heads, can change the processing angle and also bring the powerful and high-quality cutting benefits for machine.
2. This product uses for Japanese gear grinding, so the spindle speed can up to 2000rpm and also can bring the powerful and high-quality cutting benefits for machine.
3. Universal head offer 800rpm or 2000rpm of model for you to optional.
4. There are 2 models in IK Universal Head series.


Besides these characteristics. IK-N95 could be used with IK-N95 semi-automatic hydraulic table. IK-U90+IK-N95 are applied for auto-rotating multi-angle machining. (Accessory Milling Head / Semi-Automatic Angular Head + Position Chainring 90° Angle Head)

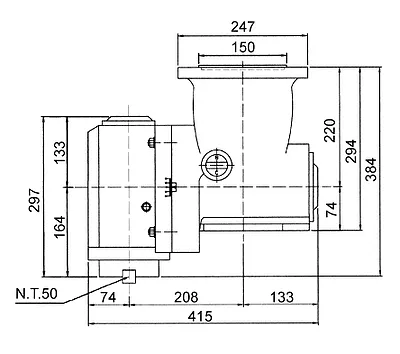

Specification

Model Unit IK-U90
UNIVERSAL HEAD
Spindle Bore Diameter   NT50
Speed Ratio   1:1
Max Diameter of Cutter mm 150
Max Speed rpm 800 / 2000

Country of Origin Taiwan
Weight (Approximate) kg 118
Warranty 1 year (non artificial mistake)
