Column Milling
Long Milling NC Right Vertical Milling Head
IK-618L-RV(NC)

PLANO MILLING HEAD / Long Milling NC Right Vertical Milling Head

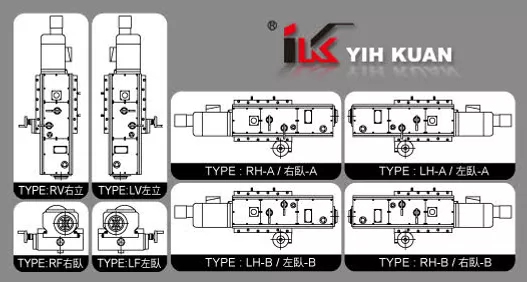

Selection of installing the milling head.
RV/LV/RH-A/LH-A/RH-B/LH-B

1. IK milling heads can upgrade or replacement your existing machine body, milling machine or special machine and also it can bring more stable and high-quality machining benefits for work piece cutting.
2. It is used for mold manufacturing or precision processing.
3. The machine processing for travel is 850 mm.
4. This product is used in Gantry (Plano) Milling Machine (vertical / horizontal), suitable for heavy metal cutting.
5. Plano milling head series offer accessory head for you to optional.
It will apply for multi-angle machining to upgrade efficiency and longer machining range.
6. This product of standard motor is 15HP. We also offer 20HP for you to optional.
7. Offer pneumatic blade locking device, bearing guide screw, pneumatic leveler for you to optional.
8. IK-618L-RV(NC) has been applied through the structure patents, patents number are M417975 and M419629.
9. There are 10 models in IK Plano Milling Machine Head Series.

Specification

Model Unit IK-618L-RV(NC)
SPINDLE
Spindle Bore Diameter   NT50
Diameter of Spindle Nose mm Φ128.6
Spindle Motor (2 Option for Selection) Hp 15(4P) 20(4P)
Step of Spindle Speed stage 6
Spindle Speed (50Hz) rpm 110 326
166 450
220 675
Spindle Speed (60Hz) rpm 132 392
200 541
265 810
WORKING RANGE
Max Diameter of Cutter mm 250
Travel mm 700(down)
Rapid Travel AC Motor   0.75Kw/1Hp AC
3 Phase 4 Poles x 1/20
Rapid Travel Speed mm/min 358(50Hz)
428(60Hz)
Reversal Slide   0.5mm/rev
→||← 0.01mm
STANDARD ACCESSORIES (● INCLUDE IN PRODUCT)
Spindle Motor (15HP)
Rapid Travel AC Motor
Bearing Guide Screw
OPTIONAL ACCESSORIES (○ APOLEGAMY)
Pneumatic Blade
Locking Device

Pneumatic Leveler
IK-A90 Angular Head
IK-D90 Deep Head
IK-U90 Universal Head
IK-U45 Universal Head

Country of Origin Taiwan
Weight (Approximate) kg 1300
Warranty 1 year (non artificial mistake)
