Special processing milling cutter

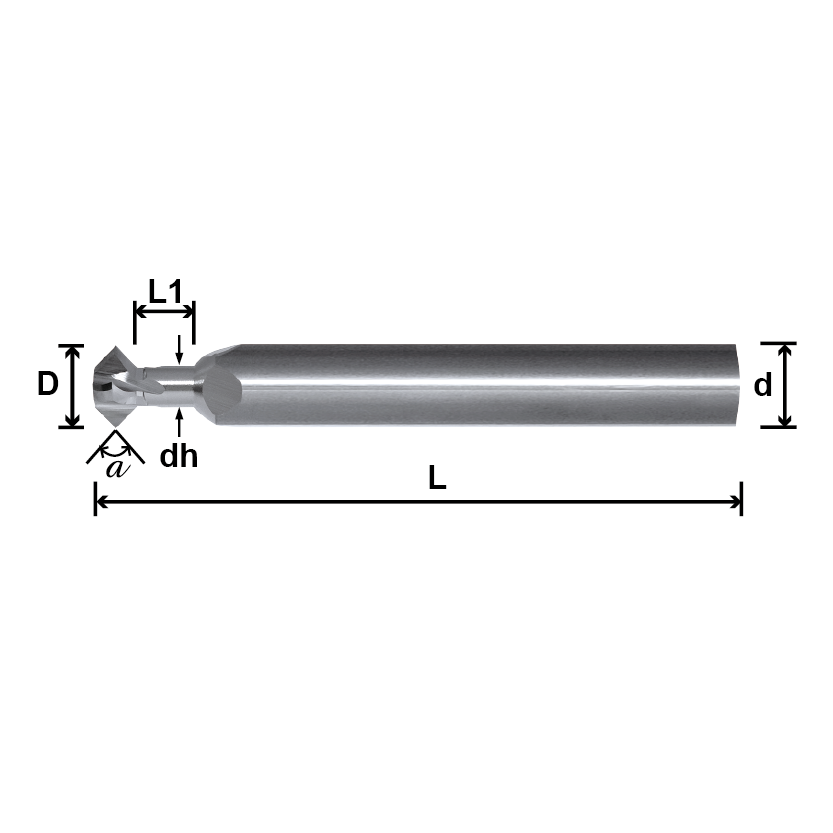

Tungsten Carbide Back and Front Chamfering Cutter
2R2UD
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
a Top Angle |
D Outside Diameter |
dh Neck dia |
I Flute Length |
NL Neck Length |
T Flute |
d Shank Diameter |
L Overall Length |
| 2 2R2UD0200904 | 90° | 2 | 1 | 1 | 2 | 4 | 4 |
50 |
| 2 2R2UD0300904D6 | 90° | 3 | 1.5 | 1.5 | 3 | 4 | 6 | 75 |
|
2 2R2UD0400904D6 |
90° |
4 |
2 | 1.8 | 4 | 4 |
6 |
75 |
| 2 2R2UD0600904 | 90° | 6 | 3 | 2.8 | 6 | 4 | 6 |
75 |
| 2 2R2UD0800904 | 90° | 8 | 4 | 3.8 | 8 | 4 | 8 |
75 |
| 2 2R2UD1000904 | 90° | 10 | 5 | 4.8 | 10 | 4 | 10 |
75 |
| 2 2R2UD1200904 | 90° | 12 | 6 | 5.8 | 12 | 4 | 12 |
75 |
