5# Mold Processing
LNR (Corner Radius For Deep Processing,Long Neck),4 Flutes
LNR
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|

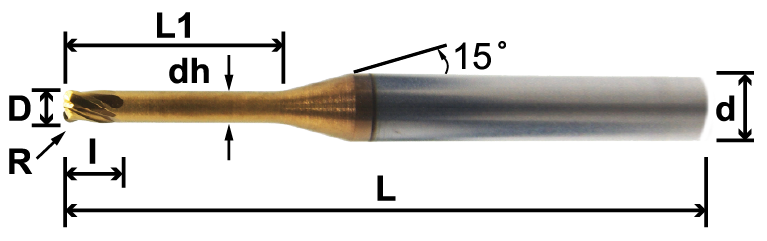

Model No. |
D Diameter |
R Corner Radius |
I Flute Length |
L1 Effective Length |
dh Neck dia |
d Shank Diameter |
L Overall Length |
price |
| 5 LNR 0601034TX | 0.6 | 0.1R | 0.6 | 3 | 0.55 | 4 |
50 |
|
| 5 LNR 0601044TX | 0.6 | 0.1R | 0.6 | 4 | 0.55 | 4 |
50 |
|
| 5 LNR 0601054TX | 0.6 | 0.1R | 0.6 | 5 | 0.55 | 4 |
50 |
|
| 5 LNR 0801044TX | 0.8 | 0.1R | 0.8 | 4 | 0.75 | 4 |
50 |
|
| 5 LNR 0801064TX | 0.8 | 0.1R | 0.8 | 6 | 0.75 | 4 |
50 |
|
| 5 LNR 1002044TX | 1 | 0.2R | 1 | 4 | 0.95 | 4 |
50 |
|
| 5 LNR 1002064TX | 1 | 0.2R | 1 | 6 | 0.95 | 4 |
50 |
|
| 5 LNR 1002084TX | 1 | 0.2R | 1 | 8 | 0.95 | 4 |
50 |
|
| 5 LNR 1002104TX | 1 | 0.2R | 1 | 10 | 0.95 | 4 |
50 |
|
| 5 LNR 1502064TX | 1.5 | 0.2R | 1.5 | 6 | 1.45 | 4 |
50 |
|
| 5 LNR 1502084TX | 1.5 | 0.2R | 1.5 | 8 | 1.45 | 4 |
50 |
|
| 5 LNR 1502104TX | 1.5 | 0.2R | 1.5 | 10 | 1.45 | 4 |
50 |
|
| 5 LNR 1502124TX | 1.5 | 0.2R | 1.5 | 12 | 1.45 | 4 |
50 |
|
| 5 LNR 1505064TX | 1.5 | 0.5R | 1.5 | 6 | 1.45 | 4 |
50 |
|
| 5 LNR 1505084TX | 1.5 | 0.5R | 1.5 | 8 | 1.45 | 4 |
50 |
|
| 5 LNR 1505104TX | 1.5 | 0.5R | 1.5 | 10 | 1.45 | 4 |
50 |
|
| 5 LNR 1505124TX | 1.5 | 0.5R | 1.5 | 12 | 1.45 | 4 |
50 |
|
| 5 LNR 2002084TX | 2 | 0.2R | 2 | 8 | 1.95 | 4 |
50 |
|
| 5 LNR 2002104TX | 2 | 0.2R | 2 | 10 | 1.95 | 4 |
50 |
|
| 5 LNR 2002124TX | 2 | 0.2R | 2 | 12 | 1.95 | 4 |
50 |
|
| 5 LNR 2002164TX | 2 | 0.2R | 2 | 16 | 1.95 | 4 |
50 |
|
| 5 LNR 2005084TX | 2 | 0.5R | 2 | 8 | 1.95 | 4 |
50 |
|
| 5 LNR 2005104TX | 2 | 0.5R | 2 | 10 | 1.95 | 4 |
50 |
|
| 5 LNR 2005124TX | 2 | 0.5R | 2 | 12 | 1.95 | 4 |
50 |
|
| 5 LNR 2005164TX | 2 | 0.5R | 2 | 16 | 1.95 | 4 |
50 |
