Heavy-Duty&Anti-Vibration Operation Series

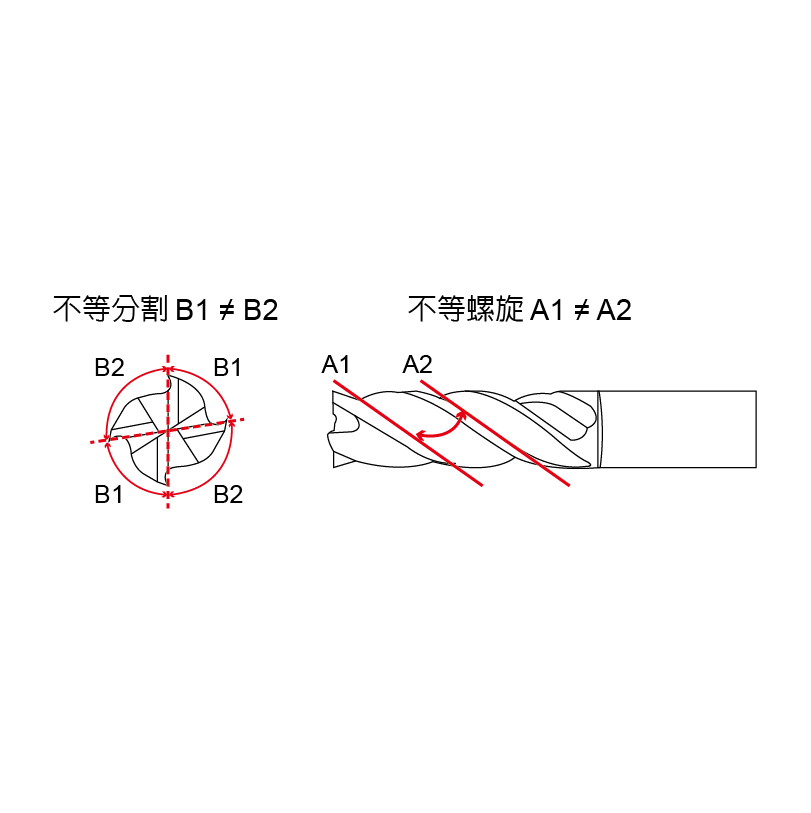

CED (Highly Efficient Operation),4 Flutes
CED
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
price |
|
CED 0104GR |
1 |
3 |
4 |
50 |
|
| CED 0154GR | 1.5 | 4.5 | 4 | 50 |
|
| CED 0204GR | 2 | 6 | 4 |
50 |
|
| CED 0254GR | 2.5 | 8 | 4 |
50 |
|
| CED 0304GR | 3 | 9 | 4 |
50 |
|
| CED0304GRD6 | 3 | 9 | 6 |
50 |
|
| CED 0404GR | 4 | 12 | 4 |
50 |
|
| CED 0404GRD6 | 4 | 12 | 6 |
50 |
|
| CED 0504GR | 5 | 15 | 6 |
50 |
|
| CED 0604GR | 6 | 18 | 6 |
50 |
|
| CED 0804GR | 8 | 24 | 8 |
60 |
|
| CED 1004GR | 10 | 30 | 10 |
75 |
|
| CED 1204GR | 12 | 36 | 12 |
75 |
|
| CED 1604GR | 16 | 50 | 16 |
100 |
|
| CED 2004GR | 20 | 50 | 20 |
100 |
