5# Mold Processing

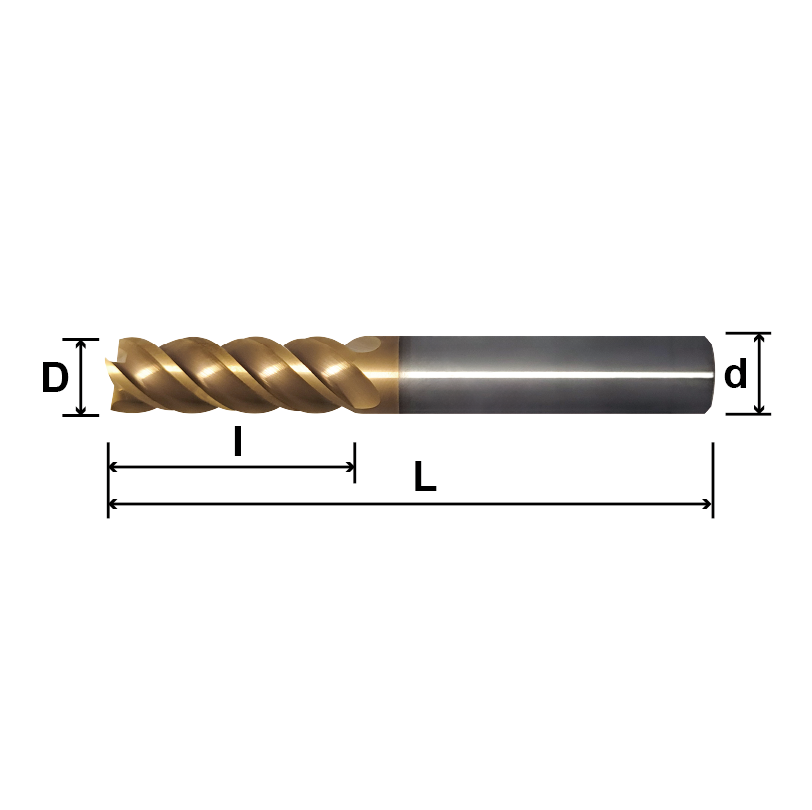

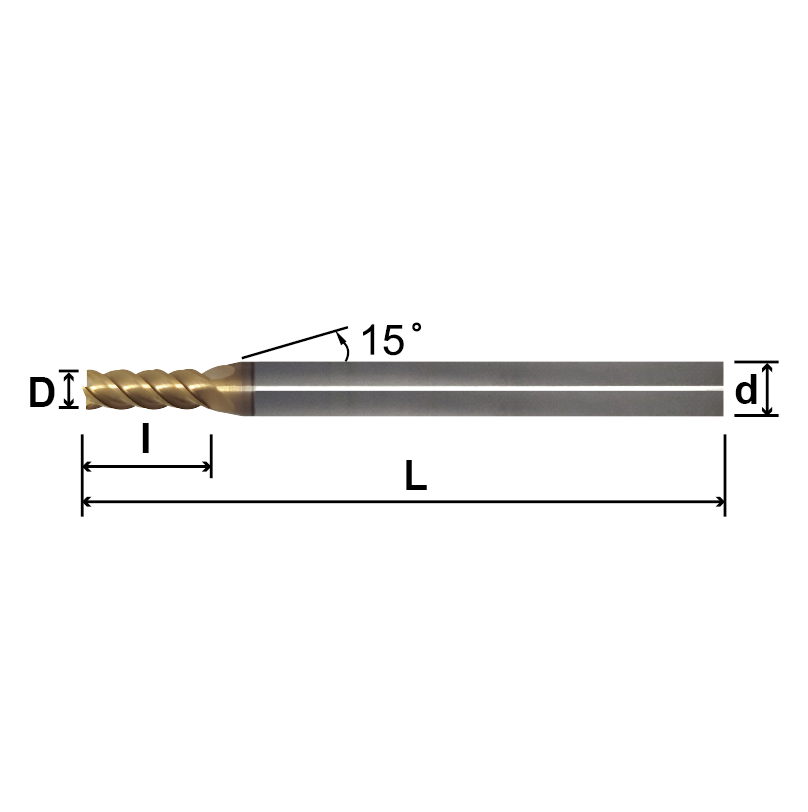

MHD (Heavy cutting Operation Type), 4 Flutes
MHD
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
price |
|
5 MSE 0104TX |
1 |
3 |
4 |
50 |
|
| 5 SE 0104TX | 1 | 3 | 6 |
50 |
|
| 5 MSE 0154TX | 1.5 | 4 | 4 |
50 |
|
| 5 SE 0154TX | 1.5 | 4 | 6 |
50 |
|
| 5 MSE 0204TX | 2 | 6 | 4 |
50 |
|
| 5 SE 0204TX | 2 | 6 | 6 |
50 |
|
| 5 MSE 0254TX | 2.5 | 8 | 4 |
50 |
|
| 5 SE 0254TX | 2.5 | 8 | 6 |
50 |
|
| 5 MHD 0304TXD3 | 3 | 8 | 3 |
50 |
|
| 5 MHD 0304TX | 3 | 8 | 4 |
50 |
|
| 5 MHD 0304TXD6 | 3 | 8 | 6 |
50 |
|
| 5 MHD 0354TX | 3.5 | 10 | 4 |
50 |
|
| 5 MHD 0354TXD6 | 3.5 | 10 | 6 |
50 |
|
| 5 MHD 0404TX | 4 | 11 | 4 |
50 |
|
| 5MHD 0404TXD6 | 4 | 11 | 6 |
50 |
|
| 5 MHD 0504TX | 5 | 13 | 6 |
50 |
|
| 5 MHD 0604TX | 6 | 16 | 6 |
50 |
|
| 5 MHD 0704TX | 7 | 18 | 8 |
60 |
|
| 5 MHD 0804TX | 8 | 20 | 8 |
60 |
|
| 5 MHD 0904TX | 9 | 25 | 10 |
75 |
|
| 5 MHD 1004TX | 10 | 30 | 10 |
75 |
|
| 5 MHD 1104TX | 11 | 28 | 12 |
75 |
|
| 5 MHD 1204TX | 12 | 30 | 12 |
75 |
|
| 5 MHD 1304TX | 13 | 40 | 16 |
100 |
|
| 5 MHD 1404TX | 14 | 40 | 16 |
100 |
|
| 5 MHD 1504TX | 15 | 45 | 16 |
100 |
|
| 5 MHD 1604TX | 16 | 50 | 16 |
100 |
|
| 5 MHD 1804TX | 18 | 50 | 20 |
100 |
|
| 5 MHD 2004TX | 20 | 50 | 20 |
100 |
