Taiwan scale with spare parts
ELK STRAIGHT BLOCK SETS
ELK

CATEGORY:Britan

Material:YK30
Heat Treatment Hardness:HRC56°~

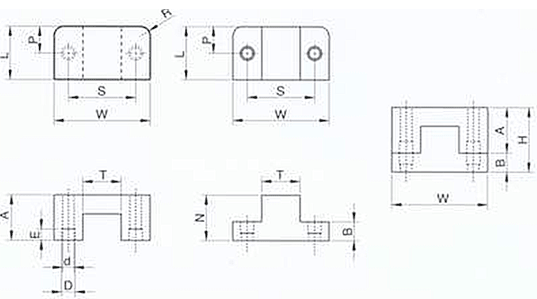

Specification

Tolerance Chart
NAME ELK-15 ELK-25 ELK-35 ELK-45
W0 ~ -.0004 38.10 63.50 88.90 114.3
L±.25 25.40 38.10 50.80 63.50
A±.05 22.17 34.87 44.40 53.92
B±.05 9.470 15.82 19.00 22.17
N±.05 22.10 34.80 44.20 53.85
T 12.70 25.40 36.58 50.80
S±.25 25.40 44.45 63.50 82.55
R±.25 7.000 8.500 9.500 12.00
P±.25 12.70 19.05 25.40 31.75
D 10.50 12.00 15.50 20.00
d 6.000 7.200 10.50 14.00
E 7.000 8.000 11.00 15.00
P±.25 12.70 19.05 25.40 31.75
H±.10 31.64 50.69 63.40 76.09

 ※Display Method:ELK-25=Quantity
