Japanese scale with spare parts

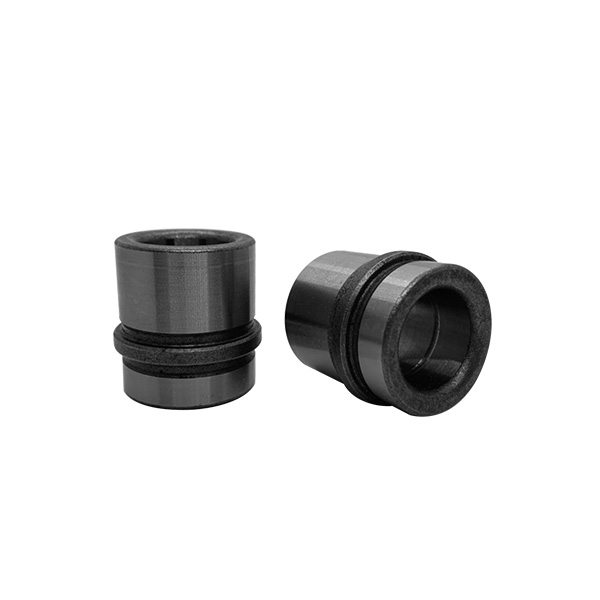

EJECTOR GUIDE BUSH
EGBN

CATEGORY:Japan

Material:SUJ-2
Heat Treatment Hardness:HRC58°~

Specification

EGBH Tolerance Chart
Diameter d d1 d2 D
Size Tolerance Size Tolerance Size Tolerance
10 10 +0.010
+0.015
18   0
  -0.012
18

-0.1

-0.2

21
12 12 20 20 23
13 13 22 22 25
16 16 25 25 28
20 20 30 30 33
25 25 35 35 38
30 30 40 40 43
35 35 45 45 48
40 40 52 52 55
※Display Method:EGBH   d×L=Quantity

EGBN Tolerance Chart

Diameter d d1 d2 D
Size Tolerance Size Tolerance Size Tolerance
13 13

+0.010

+0.015

22

  0

-0.012

22

-0.1

-0.2

25
16 16 25 25 28
20 20 30 30 33
25 25 35 35 38
30 30 40 40 43
35 35 45 45 48
40 40 52 52 55
※Display Method:EGBN   d×L=Quantity
