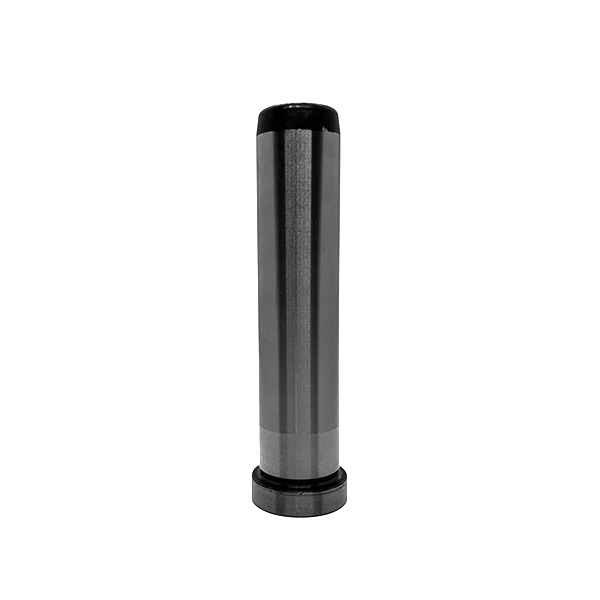

GPE GUIDE PIN E TYPE
GPE
CATEGORY：Japan
Material:SUJ-2
Heat Treatment Hardness:HRC58°~ (Medium Frequency)
Specification
| Tolerance Chart |
| Diameter | d | d1 | L1 | D | H | ||
| Size | Tolerance | Size | Tolerance | ||||
| 10 | 10 |
-0.016 -0.023 |
10 |
+0.010 +0.015 |
19 | 13 | 5 |
| 12 | 12 | 12 | 17 | ||||
| 13 | 13 | 13 | 18 | ||||
| 16 | 16 |
-0.020 -0.027 |
16 |
+0.012 +0.017 |
20 | 6 | |
| 20 | 20 | 20 | 24 | 25 | |||
| 25 | 25 |
-0.022 -0.030 |
25 |
+0.011 +0.016 |
30 | 8 | |
| 30 | 30 | 30 | 29 | 35 | |||
| 35 | 35 |
-0.026 -0.035 |
35 | 40 | |||
| 40 | 40 | 40 | 34 | 45 | 10 | ||
| ※Display Method:GPE d×L×L1=Display Method | ||||
