English scale with spare parts

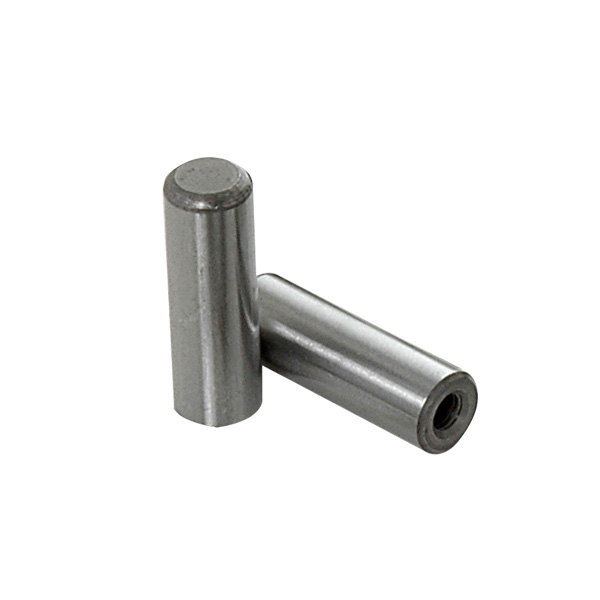

ESET-2 DOWEL PIN
ESET-2
CATEGORY：Britan
Material：SUJ-2
Heat Treatment Hardness:HRC58°~(Medium Frequency)
Specification
| Tolerance Chart |
| Diameter | d(mm) | M | l | |||||
| Size | Tolerance | |||||||
| 1/4" | 6.350 | -0.01 -0.02 |
1/8 | 8 | ||||
| 5/16" | 7.937 | W3/16 | 12 | |||||
| 3/8" | 9.525 | |||||||
| 1/2" | 12.700 | W1/4 | 15 | |||||
| 5/8" | 15.875 | W5/16 | 20 | |||||
| 3/4" | 19.050 | w3/8 | 25 | |||||
| 1" | 25.400 | |||||||
※Display Method：ESET-2 d×L=Quantity
