Boring Milling Head
Boring Milling Spindle Head

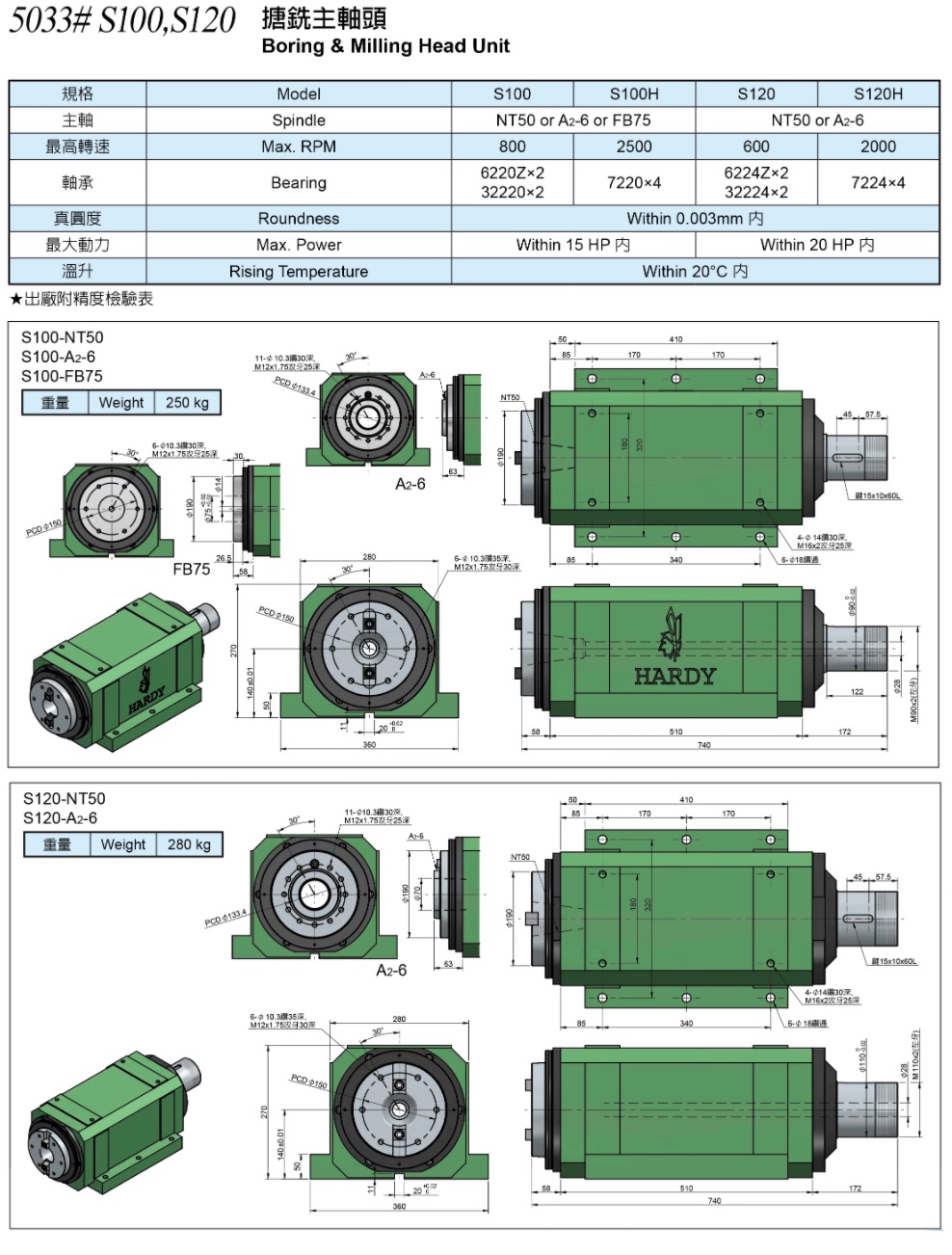

S120

S120主軸使用德國SKF或日本NSK軸承,精度保持0.003mm內,搪銑主軸頭最高轉速2000,適合搭配伺服滑台或油壓滑台,提升加工效率!

Specification

. Standard 3-phase AC motor 12kW is included, optional maximum power up to 30kW
. Belt driven at fixed speed and incorporate a timing belt
. Spindle taper NT50 and A2-6 are available
. Available for servo driven at variable speeds
. AC Induction Motor protection IP 54
. Gearbox motor is available upon request
