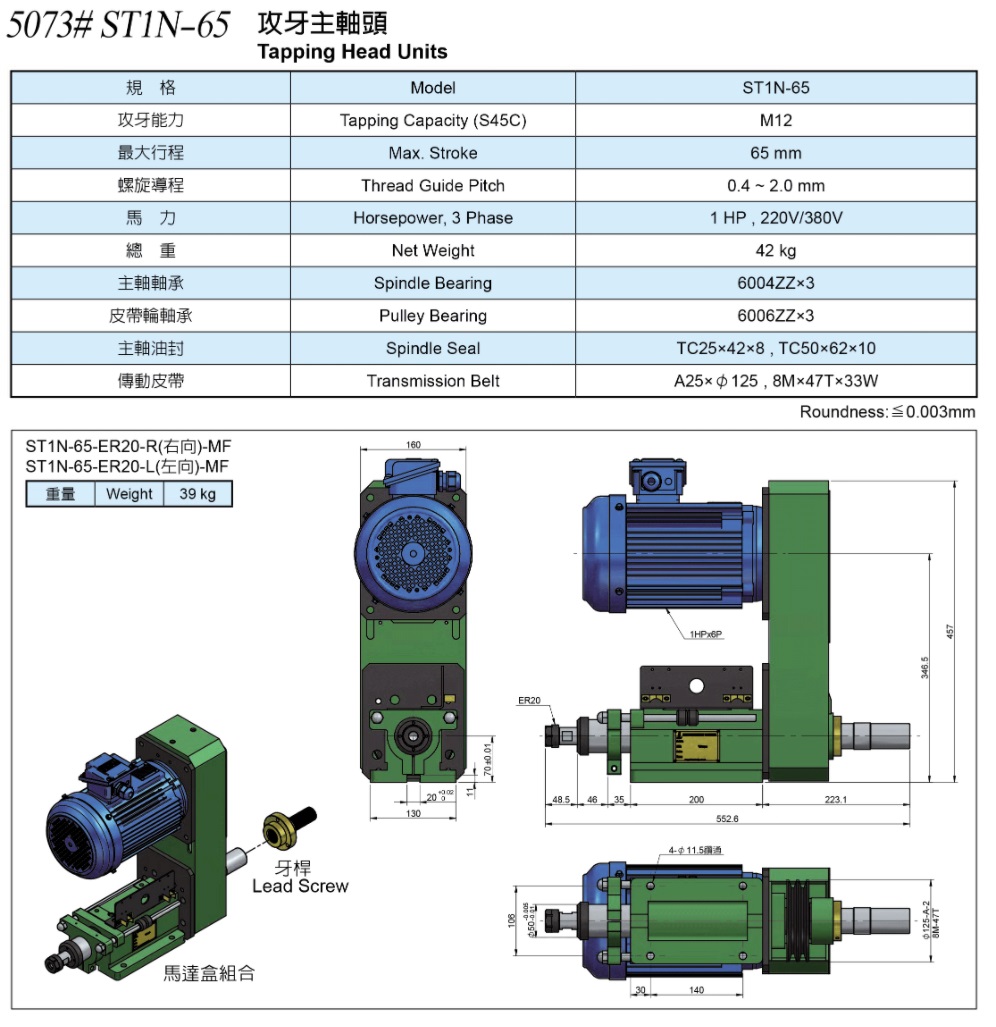

ST1N tapping spindle unit is designed with lead screw transmission and supported automatic thread cutting and float tap chuck. The maximum tapping capacity is M12 (S45C).
． Standard 3-phase AC motor 0.75kW is included, optional maximum power up to 1.5kW
． Belt driven at fixed speed and incorporate a timing or V belt
． Spindle taper ER20, JT6, MT2 and AS22 are available
． Available for servo driven at variable speeds
． OMRON proximity switch sensors and stand are furnished
． AC Induction Motor protection IP 54
． Gearbox motor is available upon request
