Products

Boring Milling Head
Auto Tool Change Spindle Head

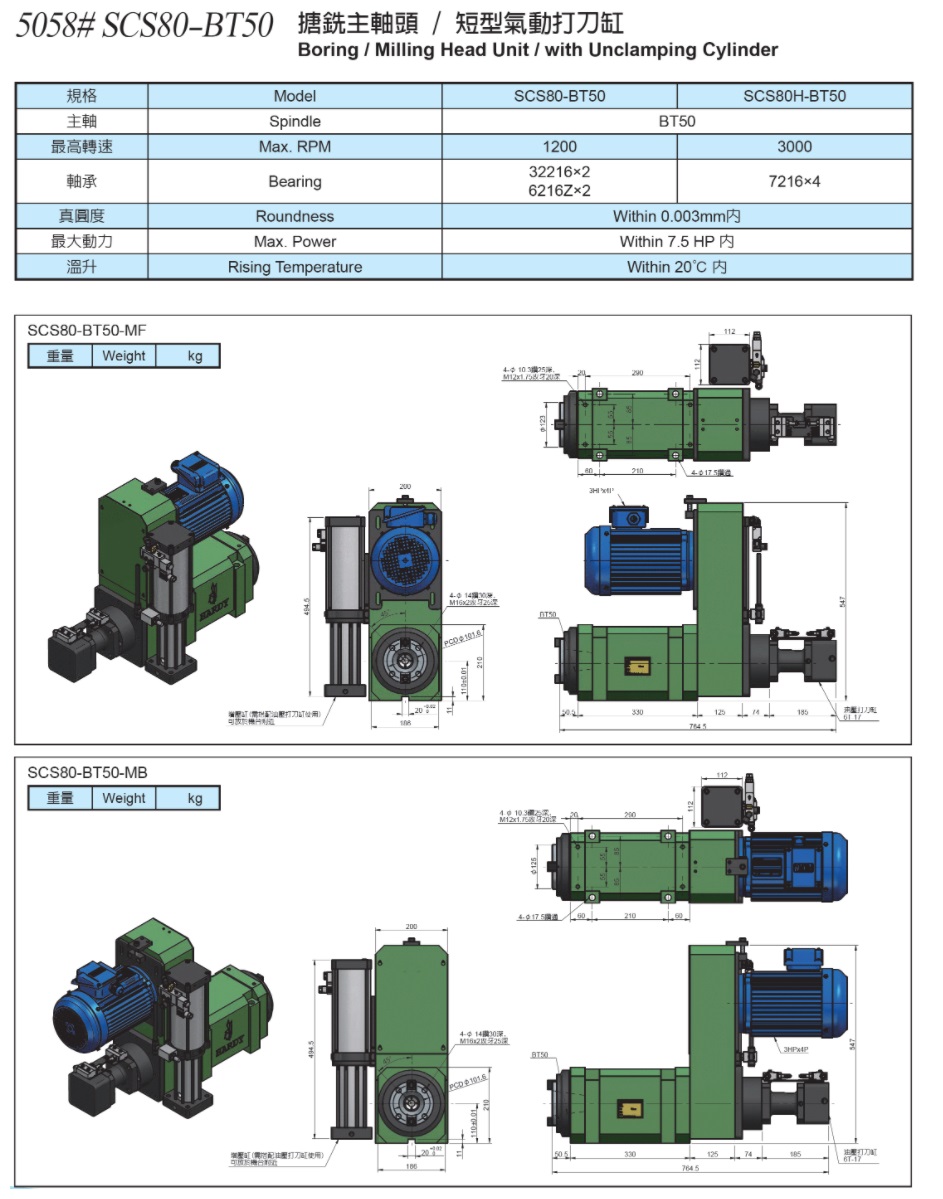

SCS80

SCS80 machining unit is designed for auto tool changing with a pneumatic clamping and unclamping cylinder and assembled with SKF or NSK bearings, the accuracy is guaranteed under 0.003mm. Its maximum capacity RPM 3000 is suitable to mount on a CNC servo slide for your machining applications.

Specification

. Standard 3-phase AC motor 2.2kW is included, optional maximum power up to 3.7kW
. Belt driven at fixed speed and incorporate a timing or Poly-V belt
. Spindle taper BT50 is available
. Available for servo driven at variable speeds
. AC Induction Motor protection IP 54
. Gearbox motor is available upon request
