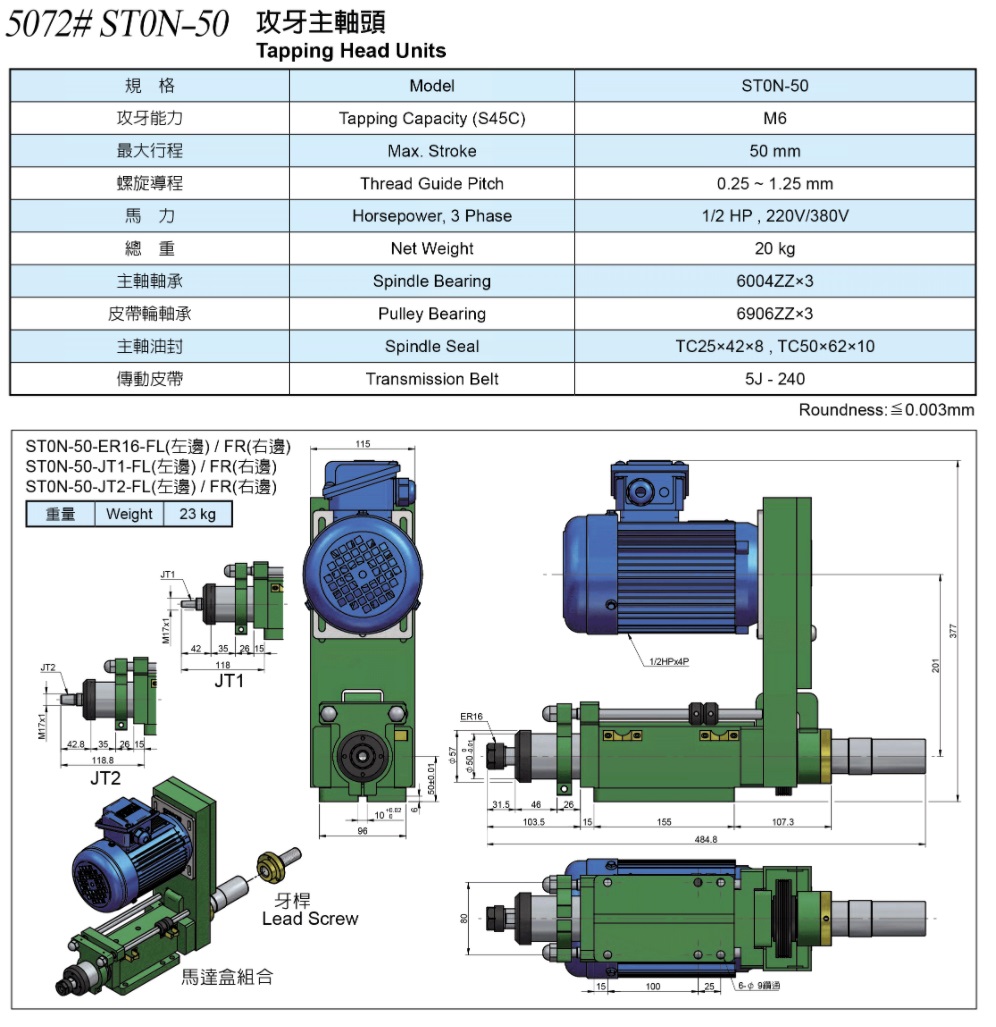

ST0N tapping spindle unit is designed with lead screw transmission and supported automatic thread cutting and float tap chuck. The maximum tapping capacity is M6 (S45C).
． Standard 3-phase AC motor 0.4kW is included, optional maximum power up to 0.75kW
． Belt driven at fixed speed and incorporate a Poly-V belt
． Spindle taper ER16, JT1 and JT2 are available
． Available for servo driven at variable speeds
． OMRON proximity switch sensors and stand are furnished
． AC Induction Motor protection IP 54
． Gearbox motor is available upon request
