Products

RESISTANCE-TYPE CENTRALIZED THIN OIL LUBRICATION SYSTEM
Timing thin oil lubrication pump
BTB-B16

● It can works continuously

●It has liquid level detection, the pumps has no oil and promptly reminds.

● There is a lock function to prevent employees from mishandling.

● There is liquid level and abnormal code display

Warranty Period:2 Years
Min.Order Quantity:1 Piece/Pieces
Supply Ability:10000 Piece/Pieces per Month

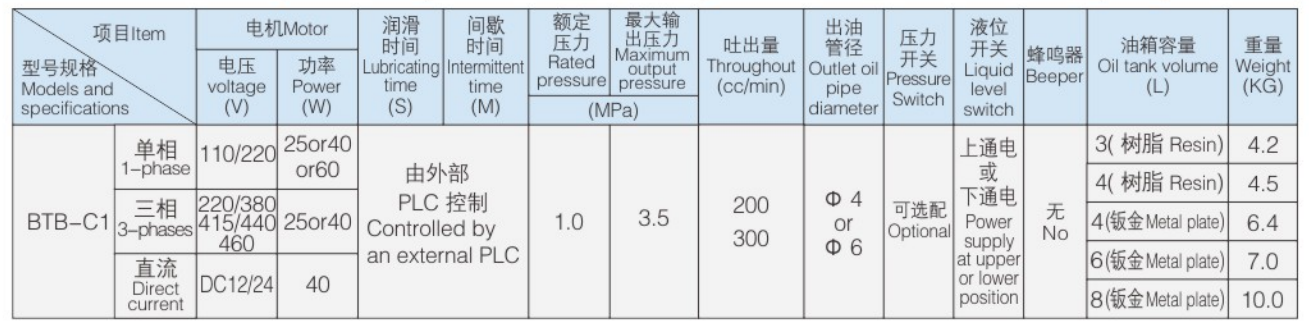

Specification

Performance and characteristic

• The system is configured with 2 action modes
a.Lubricating: When turning on, execute lubricating timing
b.Intermittent: Execute intermittent timing after lubricating is completed

• Lubricating time and intermittent time can be adjusted.

• Provided with liquid level switch and pressure switch (optional). When oil volume or pressure is insufficient, the beeper alarms, and send abnormal signal.

• System time range:
LUB: 2,4,8,16,25 seconds
INT: 8,15,30,60,120 minutes( Customized ACPT)

• The panel indicator displays lubricating and intermittent status.

• Push the RST key to force lubricating or eliminate abnormal signal.

• The motor has self- protection function to avoid the damage of high temperature and overload.

• Resistance-type pump is decompression device, connect with proportional joint distributor.

• Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.

Mold
Machine
Vehicle
