Products

VOLUMETRIC CENTRALIZED THIN OIL LUBRICATION SYSTEM
Timing thin oil lubrication pump
BTA-B2P8

●Quantify lubrication of each lubrication point.

●Provided with liquid level switch .

●Provided with pressure switch (optional).

●With overheat protection, the motor is durable

●The pumps has two layers of filters to make the oil passages smoother.

Warranty Period:2 Years
Min.Order Quantity:1 Piece/Pieces
Supply Ability:10000 Piece/Pieces per Month

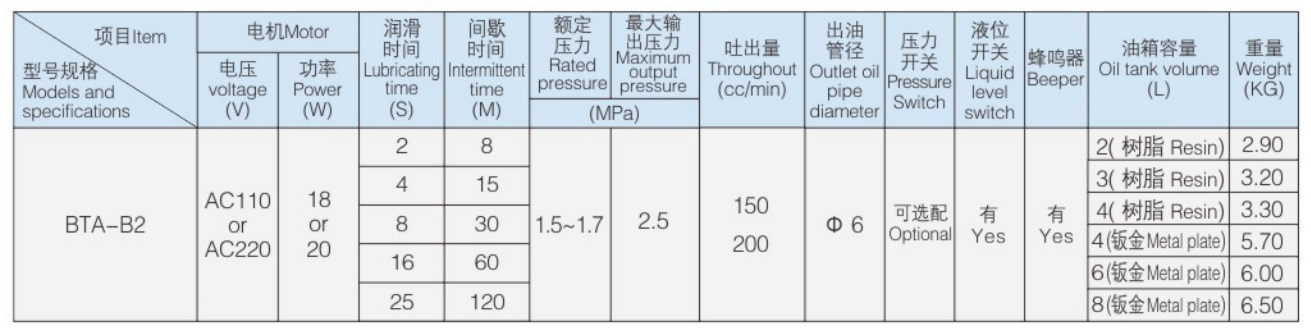

Specification

Performance and characteristric

1、The system is configured with 2 action modes: lubrication and intermittent.
2、 Lubricating time and intermittent time can be adjusted .
3、 Provided with liquid level switch and pressure switch (optional). when oil volume or pressure is insufficient, the beeper makes sound, send alarm and offers abnormal signal output.
4、The panel indicator displays lubricating and intermittent status.
5、The system uses RST key to force lubricating or elimiate abnormal reporting signal.
6、The motor is provided with self-protection function to avoid high motor temperature and overload.
7、Overflow is provided with to protect oil injector and pipeline from being damaged by high pressure.
