4-Spindle (Circular) Boring Head
4C-W34
Adjustable spacing between spindles: ø34 - ø206 mm.
Great drilling capacity for wood ø10 - ø 50 mm.
The boring head accommodates high running speed up to 6000 RPM.
Exclusively designed with arc theorem.
Graduation adjustment for boring fixed distance holes on sqaure layout.
Ideal for application for general furniture, and assembly toys etc.
Suited for fitting on general boring machines.

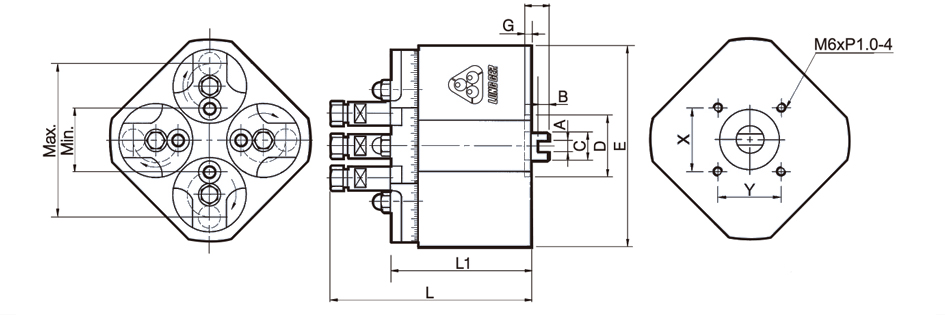

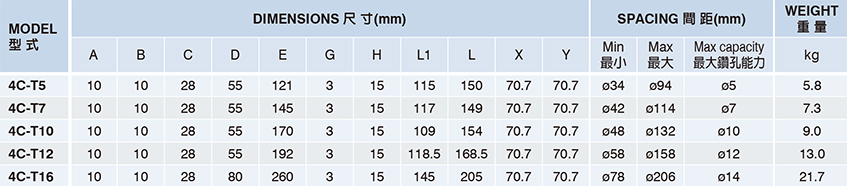

Specification
| Model | A | B | C | D | E | G | H | L1 | L | X | Y | Min. | Max. | Max. capacity |
Spindle type |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4C-W34 | 10 | 10 | 28 | 55 | 121 | 3 | 15 | 115 | 140 | 70.7 | 70.7 | Ø34 | Ø94 | Ø10 | m8X1.25, m10x1.5 |
4.8 |
| 4C-W42 | 10 | 10 | 28 | 55 | 145 | 3 | 15 | 117 | 132 | 70.7 | 70.7 | Ø42 | Ø114 | Ø15 | m8X1.25, m10x1.5 |
6.3 |
| 4C-W48 | 10 | 10 | 28 | 55 | 170 | 3 | 15 | 109 | 134 | 70.7 | 70.7 | Ø48 | Ø132 | Ø20 | m8X1.25, m10x1.5 |
7.7 |
| 4C-W58 | 10 | 10 | 28 | 55 | 192 | 3 | 15 | 118.5 | 143.5 | 70.7 | 70.7 | Ø58 | Ø158 | Ø30 | m8X1.25, m10x1.5 |
10.4 |
| 4C-W78 | 10 | 10 | 28 | 80 | 260 | 3 | 15 | 145 | 170 | 70.7 | 70.7 | Ø78 | Ø206 | Ø50 | m8X1.25, m10x1.5 |
19.5 |
| 5C-W20 | 10 | 10 | 28 | 55 | 145 | 3 | 15 | 117 | 132 | 70.7 | 70.7 | Ø40 | Ø112 | Ø15 | M8X1.25, m10x1.5 |
6.5 |
