For Metal Working
2-Spindle Boring Head
2C-W13
Adjustable spacing between spindle: 13.5 - 164 mm.
Great drilling capacity for wood ø10 - ø50 mm.
The boring head accommodates high running speed up to 6000 RPM.
Exclusively designed with arc theorem.
Graduation adjustment for the desired size between two spindles.
Ideal for application for general home products, assembly toys etc.
Suited for fitting on general boring machines.
Specification

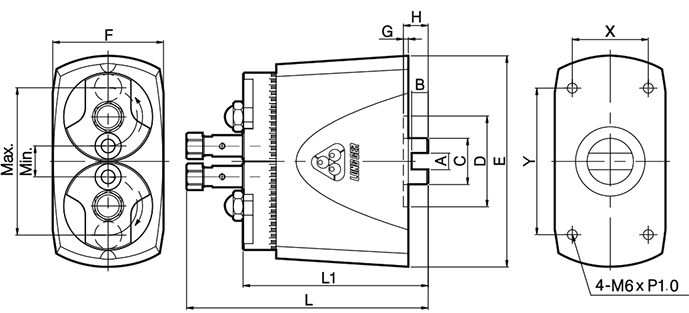

| Model | A | B | C | D | E | F | G | H | L1 | L | X | Y | Min. | Max. | Max. capacity |
Spindle type |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2C-W13 | 10 | 10 | 28 | 55 | 106.5 | 57 | 3 | 15 | 115 | 140.5 | 40 | 73.8 | 13.5 | 73.5 | Ø10 | m8x1.25, | 2.7 |
| 2C-W18 | 10 | 10 | 28 | 55 | 127.5 | 67 | 3 | 15 | 112 | 137 | 46 | 88.8 | 18 | 90 | Ø15 | m8x1.25, m10x1.5 |
3.5 |
| 2C-W25 | 10 | 10 | 28 | 55 | 191 | 109 | 3 | 16 | 120 | 145 | 70.7 | 70.7 | 25 | 151 | Ø15 | m8x1.25, m10x1.5 |
7.4 |
| 2C-W22 | 10 | 10 | 28 | 55 | 143 | 82 | 3 | 15 | 114 | 139 | 46 | 88.8 | 22 | 106 | Ø20 | m8x1.25, m10x1.5 |
4.2 |
| 2C-W26 | 10 | 10 | 28 | 55 | 166 | 92 | 3 | 16 | 120 | 145 | 46 | 88.8 | 26 | 126 | Ø30 | m8x1.25, m10x1.5 |
5.8 |
| 2C-W36 | 10 | 10 | 28 | 55 | 211 | 114 | 3 | 16 | 138 | 163 | 70.7 | 70.7 | 36 | 164 | Ø50 | m8x1.25, m10x1.5 |
10.0 |
| 2C-W19 | 10 | 10 | 28 | 55 | 127.5 | 67 | 3 | 15 | 112 | 137 | 46 | 88.8 | 3/4" | 3 1/2" | Ø5/8" | 7/16"x14 | 3.6 |
| 2C-W254 | 10 | 10 | 28 | 55 | 191 | 109 | 3 | 15 | 120 | 145 | 70.7 | 70.7 | 1" | 5 3/4" | Ø5/8" | 7/16"x14 | 7.4 |
