Products

Washing Machine

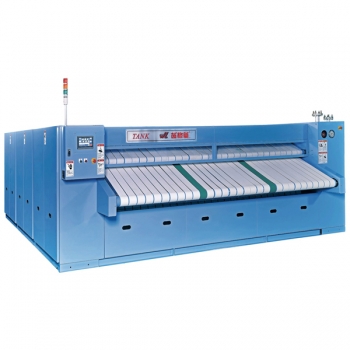

Flatwork Ironer Series-Y-3300
Y-3300

Grouping setting and special tiny shake roller device of the small diameter combined type heated rollers, make the linen surface more smoothly and brightly.
Using new type of roller setting pressed by two sides and lead belts, raise the ironing quality.
Automatic adjusting device can automatic continually adjust the heated belts, preventing from appearing belts imprints.
Small diameter heated roller structure, running smoothly, reliable and accurate, save place, high speed production capacity.
Hommization touch panel design, using frequency conversion continuous variable speed, according to different linen,can edit 15 types of ironing speed and temperature program.
Machine has been fixed hand guard device and urgent stop button,ensuring the operation safety and reliability.

Specification

Mode Y-3300IVZ Y-3300VIZ
Heated roller 4pcs 6pcs
Heated roller size Diameter ø650mm ø650mm
Width 3,330mm 3,330mm
Pipe diameter Steam inlet 50A 50A
Steam outlet 40A 40A
Compressed air 10A 10A
Motor capacity 3.75kw (3ph 220V/380V) 3.75kw (3ph 220V/380V)
Belt speed adjustment range 3~50 (m/min.) 3~50 (m/min.)
Steam pressure Normal 0.8MPa 0.8MPa
Max. 0.97MPa 0.97MPa
Equipment capacity Steam 530kg/H 690kg/H
Electricity 4KAV 4KAV
Steam consumption 290kg/H 390kg/H
Compressed air consumption 13NL/H 14NL/H
Power supply 3ph 220V/380V 50/60Hz 3ph 220V/380V 50/60Hz
Distributed electricity 3.5mm2 3.5mm2
Maximum current 16A / 9A 16A / 9A
Breaker 30A 30A
Dimension Width 4715mm 4715mm
Depth 3605mm 5105mm
Height 1795mm(max.size include signal light:1975 mm)
Net weight 6,550kg 9,300kg
