Washing Machine

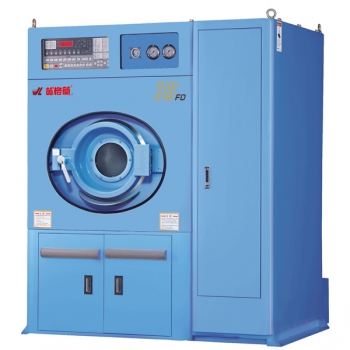

Solvent Dryer Series-WEI-18FD
WEI-18FD
Washing,dehydration and rotation can be set as desired to suit the types of clothes.
Temperature sensing device.
Oil level display.
Soft washing,automatic soaking and subscription functions.
Specially designed oil reservoir in base increases washing convenience.
Advanced inner filter constructure makes clothes more clean.
Specification
| Mode WEI-18FD | |||||
| Loading(kg) | 18kg | Motor capacity | 3.7kw | ||
| Drum | Diameter(mm) | 800mm | Oil exhaust compressor | 0.75kw | |
| Depth(mm) | 450mm | Pipe diameters | Oil intake | 1〞 | |
| Capacity(Liter) | 226L | Oil drainage | 3〞 | ||
| R.P.M | Wash (rpm) | 20.35.40.45.50 rpm | Exhaust pipe | 2〞 | |
| Distribution(rpm) | 62rpm | Caliber of exhaust oil | 1〞 | ||
| Extract | 150.420.590.720.830 rpm | Power supply | 3ph 220V/380V 50/60Hz | ||
| Oil tank capacity | 500L | Distributed electricity | 5.5mm2/3.5mm2 | ||
| Filter 1 | Internal pressure non-woven×2 | Maximum current | 17A / 11A | ||
| Filter 2 | Active carbon*1(5Lx6) | Breaker | 30A / 30A | ||
| Door dimension | ø415mm | Dimension | 1690Wx1455Dx1905H | ||
| Controlled by | WL-568 | Net weight | 1,250kg | ||
