Washing Machine

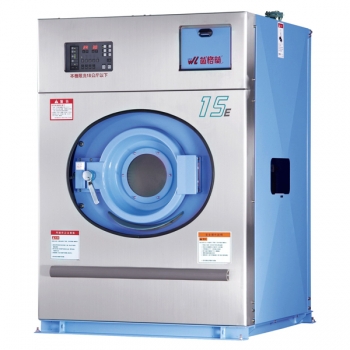

Washing Machine Series-WEI-15E
WEI-15E
Prevents Clothes from Tangling
The rotation numbers, clockwise and counterclockwise rotation time, stop time of internal barrel and water-based exhaust can be set through washing programs. With the optimal washing programs according to clothes type, you get increased washing capability and minimum clothes tangling.
The simple type computer WL-502 is easier to operate.
Signal advise and automatic trouble detection.
Easier and More Simple Operation Design (Temporary Edit)
The machine allows operator to see programs and running condition simultaneously.The operator can individually run a single stroke without need to change program memory.
Specification
| Mode WEI-15E | |||||
| Loading(kg) | 15kg | Pipe diameters | Cold water | 1〞 | |
| Drum | Diameter(mm) | 660mm | Warm water(Option)) | 1〞 | |
| Depth(mm) | 470mm | Steam | 1/2〞 | ||
| Capacity(Liter) | 160L | Rear water drain | 2〞 | ||
| R.P.M | Wash (rpm) | 35.50 rpm | Lower water drain | * | |
| Distribution(rpm) | 61 rpm | Exhaust pipe | 1 1/2〞 | ||
| Extract | 420.830 rpm | Air | * | ||
| Door dimension | ø415mm | Suspension system | 4 springs+shock absorbers | ||
| Controlled by | WL-502 | Tilt angle | * | ||
| Motor capacity | 3.75kw | Power supply | 3ph 220V/380V 50/60Hz | ||
| Required steam pressure | 7.0 kg/cm2 | Distributed electricity | 5.5mm2/2.0mm2 | ||
| Compressed air | * | Maximum current | 15A/8A | ||
| Water supply | 325L | Breaker | 30A/20A | ||
| Essential water pressure | 1.0~2.8kg/cm2 | Dimension | 1095Wx1175Dx1650H | ||
| Net weight | 610kg | ||||
